What Are the Key Advantages of Four Point Contact Ball Bearings in Modern Machinery

Article Summary: Four point contact ball bearings are essential components in demanding mechanical systems due to their unique load‑bearing geometry, compact design, and ability to handle axial loads in both directions. This article explores their design, mechanical benefits, key applications, comparative advantages over alternatives, and maintenance tips, providing a comprehensive guide for engineers, designers, and procurement professionals.

References for technical detail are drawn from industry bearing specialists (e.g., NSK, SKF, RKB) to ensure factual accuracy and best‑practice insights.

Table of Contents

• Definition & What Makes Them Unique
• Engineering Design & Mechanics
• Key Advantages
• Industrial Applications
• Specification Comparison Table
• Maintenance & Best Practices
• FAQs
• Conclusion

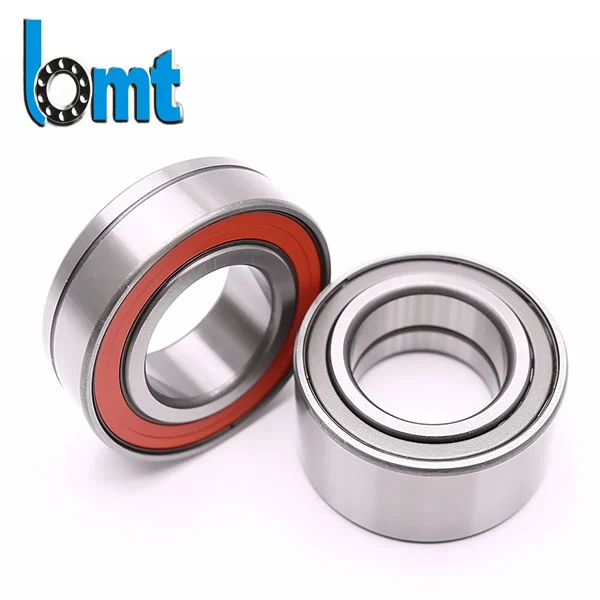

Definition: Four Point Contact Ball Bearings

Four point contact ball bearings are a class of radial single‑row angular contact ball bearings with specialized raceways that allow each ball to simultaneously contact both the inner and outer rings at four points under radial load.

Unlike standard deep groove or double‑row bearings, these bearings:

• Can sustain axial loads in both directions.
• Accommodate combined loads (axial + radial) in compact spaces.
• Provide high rigidity due to the unique contact geometry.

Engineering Design & Mechanics

At the core of four point contact bearings is the geometry of their raceways and ball configuration:

• Split Inner Ring: Allows for a larger number of balls and separable structure.
• Contact Angle: Typically around 35°, which enhances axial load capacity.
• Raceway Shape: Peach‑shaped or gothic‑arch raceways create four distinct load points under radial load.

The four contact points between balls and rings provide balanced force distribution, making these bearings suitable for heavy axial loads even in bidirectional thrust scenarios.

Key Advantages of Four Point Contact Ball Bearings

The following are core benefits that make these bearings ideal for modern industrial applications:

1. Dual‑Direction Load Handling

Four point contact bearings can carry axial loads in both directions without needing paired bearings, unlike traditional angular contact bearings.

2. Compact Axial Footprint

Compared to double‑row angular contact bearings, these bearings require significantly less axial space — a major advantage in space‑constrained equipment.

3. High Load Capacity & Rigidity

The combination of a higher number of rolling elements and optimized contact angle increases load capacity and stiffness, enhancing machine precision and responsiveness under load.

4. Simplified Mounting & Maintenance

The separable design allows the outer ring with balls and cage assembly to be installed independently from inner ring halves, simplifying installation and servicing.

5. Cost‑Effective Alternative

In many designs, a single four point contact bearing can replace two angular contact bearings, reducing parts count and inventory complexity.

Where Are Four Point Contact Ball Bearings Used?

These bearings are adopted across diverse industrial sectors due to versatility and performance:

• Automation & robotics systems
• Electric motors and power generation equipment
• Pumps, compressors, and gearboxes
• Heavy machinery such as cranes and material handling gear
• Machine tools requiring bidirectional axial load support

Specification & Comparison Table

Maintenance & Best Practice Guide

To maximize service life, follow these practices:

• Proper Lubrication: Regular oil or grease lubrication adapted to load and speed conditions ensures smooth operation.
• Temperature Monitoring: Avoid prolonged exposure above rated operating temperatures.
• Axial Clearance Adjustment: Proper clearance prevents premature wear or overheating.

Frequently Asked Questions

Q1: How do four point contact ball bearings differ from deep groove ball bearings?

A: While deep groove bearings support radial and limited axial loads, four point contact bearings are specifically shaped to handle bidirectional axial loads and fit compactly where double‑row alternatives would be too large.

Q2: What is a typical contact angle and why does it matter?

A: The typical contact angle is around 35°, which balances radial and axial load capacity and contributes to rigidity.

Q3: Can these bearings be used at high speeds?

A: Yes, their design allows for high‑speed performance, though specific ratings depend on size, lubrication, and application conditions.

Q4: Are there standard series or codes for naming these bearings?

A: Yes, bearing naming includes dimension series, aperture codes, and material/cage designations, commonly standardized across manufacturers.

Conclusion

Four point contact ball bearings stand out as a robust, space‑efficient, and versatile solution for modern machinery. From bidirectional axial load support to simplified installation and reduced part count, these bearings deliver significant design and performance advantages for a wide range of applications.

If you’re evaluating bearing options for your next mechanical design or industrial project, consider reaching out for expert advice on bearing selection and implementation strategies.

BMT offers high‑precision Four Point Contact Ball Bearings engineered for reliability and performance. To get personalized recommendations or discuss custom specifications, contact us today!
