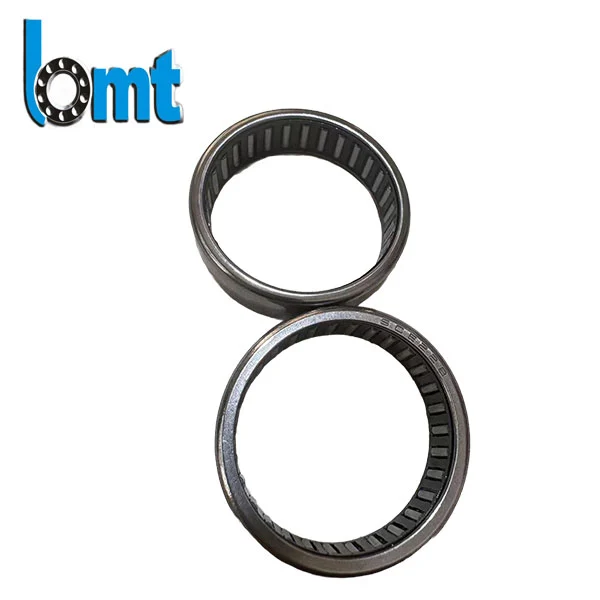

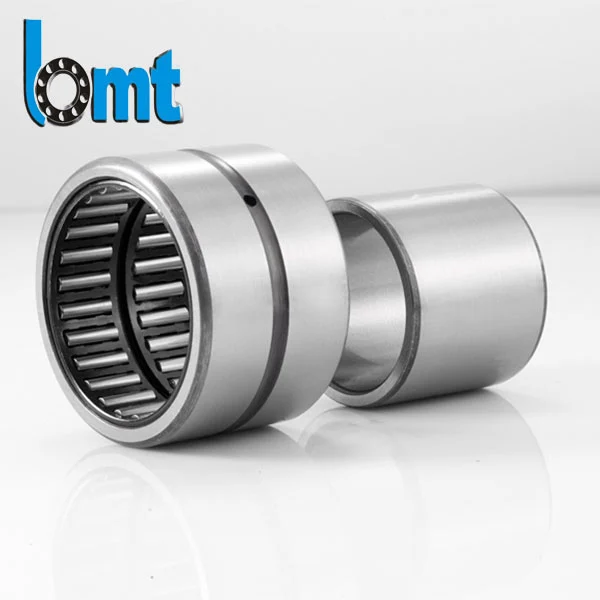

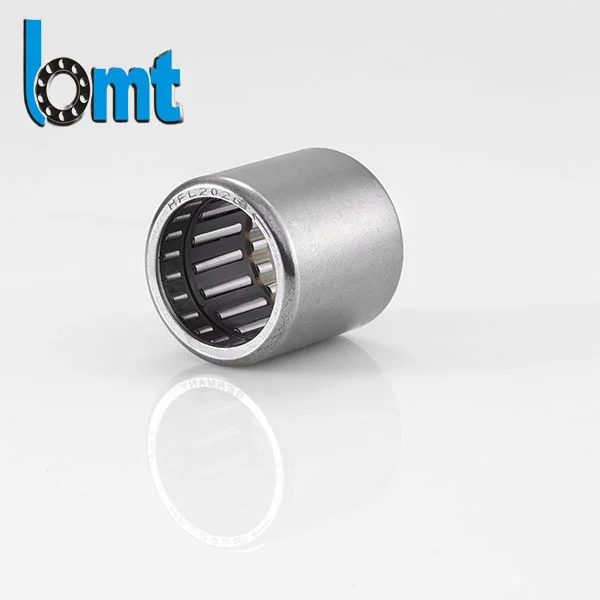

Drawn Cup Needle Roller Bearings

These bearings are widely used in electric motors, automotive transmissions, gear systems, agricultural machinery, and industrial tools where stable rotation and consistent load distribution are required.

Engineering Challenge This Bearing Solves

In compact transmission systems, engineers often face three recurring issues:

• Limited radial installation space
• High radial load requirement
• Early wear caused by uneven load distribution in standard ball bearings

Drawn cup needle roller bearings address these conditions by increasing contact surface area between rollers and raceway, which reduces stress concentration and improves load distribution during continuous operation.

Structural Design and Working Principle

Unlike deep groove ball bearings, this product uses a needle roller structure with a thin-walled outer ring.

Key design characteristics:

• Thin stamped outer ring reduces housing space requirement
• Long cylindrical rollers increase contact area with raceway
• High radial load capacity under compact dimensions
• Suitable for press-fit installation in housing bore

This structure is especially effective in systems where radial load is dominant and axial load is minimal or controlled by other components.

Material and Heat Treatment Control

Bearing performance depends on material stability and dimensional control during production.

BMT Drawn Cup Needle Roller Bearings are manufactured using:

• High carbon chromium bearing steel (GCr15 / equivalent)
• Controlled cold-forming process for outer ring precision
• Hardened needle rollers with surface finishing for reduced friction
• Stabilized heat treatment process to maintain hardness uniformity

Each batch is controlled to maintain consistent:

• Hardness distribution
• Roundness of rollers
• Raceway surface quality
• Dimensional tolerance under press-fit conditions

Typical Applications

Based on industrial usage patterns, this bearing type is commonly applied in:

• Compact gearboxes and reduction systems
• Motorcycle transmission assemblies
• Agricultural machinery drive systems
• Electric power tools (high-speed compact motors)
• Automotive steering and auxiliary systems
• Conveyor rollers and industrial automation systems

It is most suitable when space constraints prevent the use of larger bearing assemblies.

Performance Characteristics in Operation

1. High Radial Load Capacity in Limited Space

The needle roller structure distributes load across a larger contact line, improving load-bearing efficiency compared to point-contact ball bearings.

2. Stable Rotation Under Continuous Duty

When properly lubricated, the bearing maintains stable motion in long operating cycles with reduced vibration.

3. Compact Structural Integration

The thin outer ring allows direct press-fit into housing bores, reducing the need for additional bearing housings in compact assemblies.

Manufacturing and Quality Control

To ensure batch consistency for OEM applications, production includes:

• Dimensional inspection of outer ring geometry
• Roller diameter and roundness measurement
• Radial clearance control before assembly
• Hardness testing of raceway surfaces
• Running noise and vibration checks on sampling basis

For industrial applications requiring higher stability, EMQ-grade options are available with stricter noise and surface finish control.

Installation and Application Requirements

Bearing performance depends heavily on installation conditions. The following factors directly affect service life:

• Shaft and housing dimensional tolerance accuracy
• Correct press-fit force during installation
• Adequate lubrication (grease or oil film stability)
• Avoidance of misalignment during assembly
• Limiting abnormal axial impact loads

In real applications, misalignment and insufficient lubrication are the most common causes of premature failure rather than material defects.

Comparison With Standard Ball Bearings

In compact transmission systems:

OEM Manufacturing Capability

BMT Bearings supports industrial customers requiring stable mass production with consistent specifications.

OEM services include:

• Non-standard size customization
• Surface marking (laser or stamping)
• Packaging customization for export requirements
• Grease type selection based on operating environment
• Engineering drawing confirmation before production
• Batch traceability for industrial quality control

Production capacity and inspection systems are designed for long-term supply consistency in repetitive OEM orders.

Practical Use

For improved service life in real operating environments:

• Match shaft hardness with bearing specification
• Ensure correct housing bore tolerance for press-fit design
• Use appropriate lubrication intervals based on speed/load
• Avoid impact loads during installation
• Maintain cleanliness in assembly environment

Proper installation and lubrication have a greater impact on bearing life than material differences alone.

Drawn Cup Needle Roller Bearings are designed for compact mechanical systems requiring high radial load capacity and stable rotational performance. Their thin-walled structure enables efficient space utilization, while the needle roller geometry improves load distribution in continuous operation environments.
