Axial Angular Contact Roller Bearings SGL Series

We specialize in high-load precision bearing solutions designed for demanding industrial machinery and automation systems. Our Axial Angular Contact Roller Bearings SGL Series are engineered for applications that require high axial rigidity, precise positioning, and stable performance under combined loads. They are widely selected for machine tools, rotary tables, and heavy automation systems where long service life, low vibration, and consistent accuracy are critical.

Send Inquiry

Product Description

With over 20 years of manufacturing experience, we have observed a common issue in industrial applications:

standard thrust bearings often fail to maintain stable precision under continuous high axial loads and long operating cycles.

The Axial Angular Contact Roller Bearings SGL Series was developed specifically to address this limitation by improving:

Roller contact geometry

Preload stability control

Heat resistance under high-speed operation

Load distribution consistency

Compared with conventional thrust bearings, the SGL Series delivers higher rigidity and more stable rotational accuracy, especially in precision positioning systems.

Axial Angular Contact Roller Bearings Sgl Series

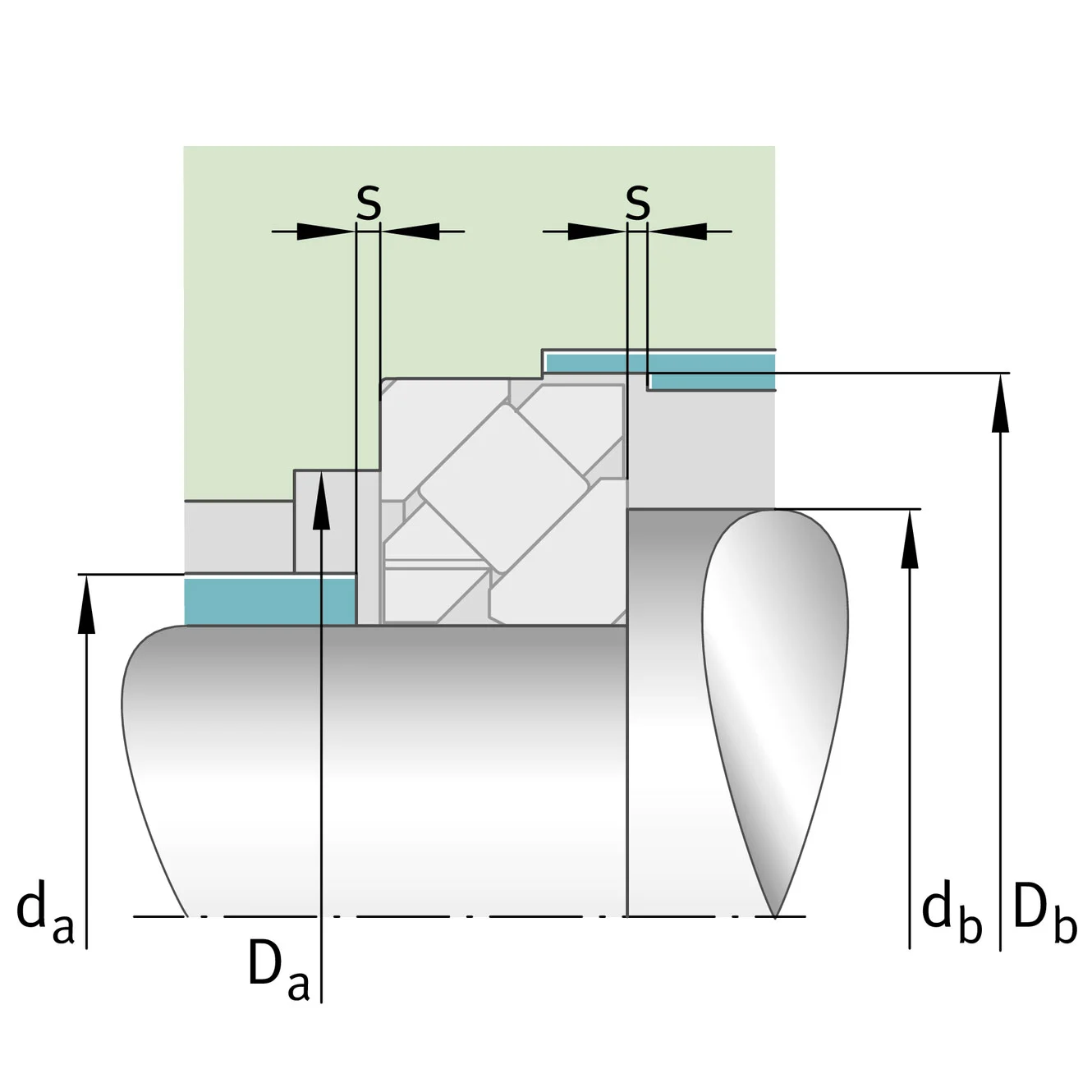

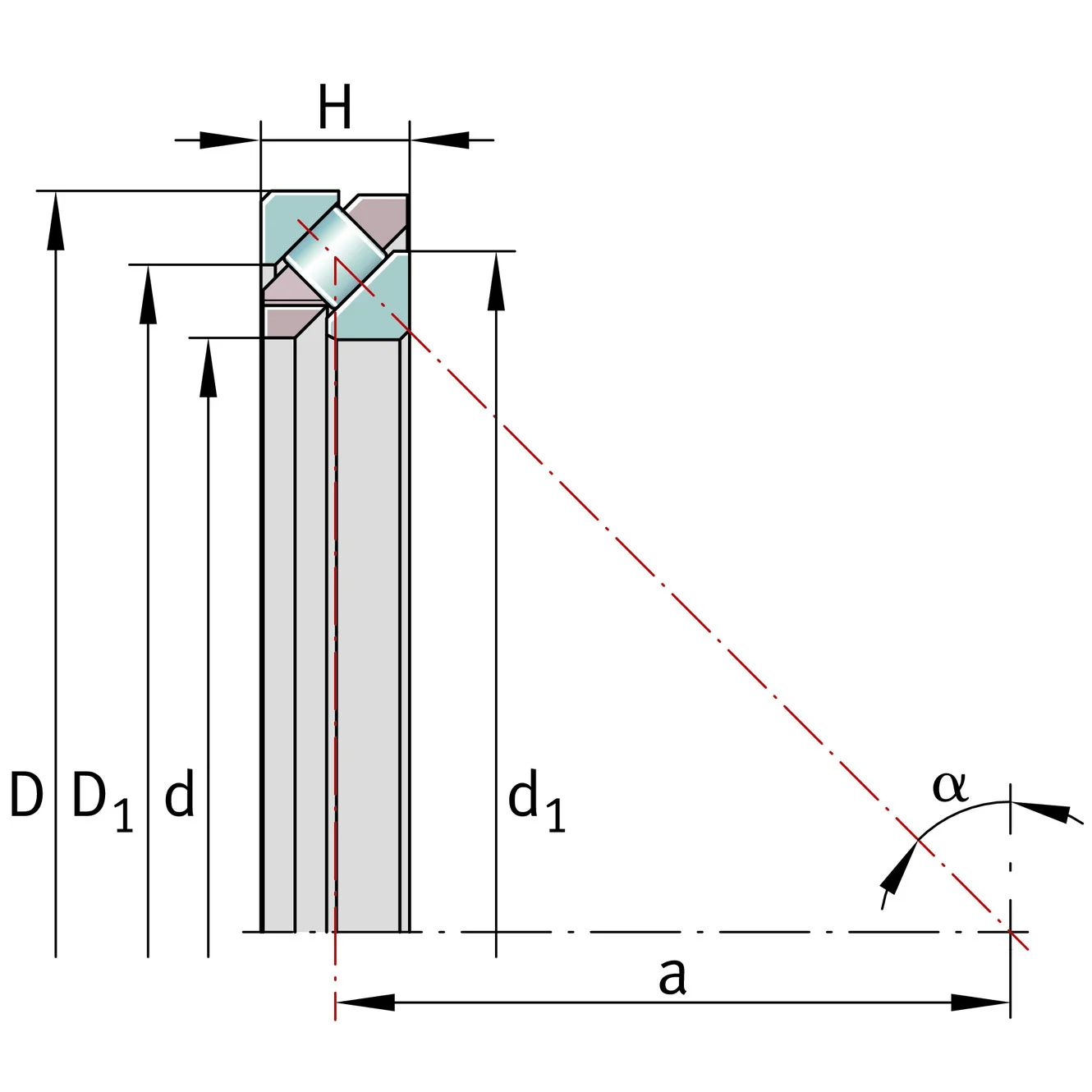

Technical Parameters

Designation	Ordering designation	Mass (kg)	d (mm)	D (mm)	H (mm)	D1 (mm)	d1 (mm)	a (mm)	DIN 623-1	Da (mm)	db (mm)	Db min (mm)	s	Cr (N)	C0r (N)	Ca (N)	C0a (N)	Cur (N)	Cua (N)	Reference speed (r/min)	Limiting speed (r/min)
SGL1730	F-587391.SGL	0.015	17	30	7	22.5	24.5	11.75	–	22.5	24.5	31	1	3500	3550	8400	17700	610	2480	7000	3200
SGL3042	F-587397.SGL	0.022	30	42	7	34.5	37.5	18	–	34.5	37.5	43	1	4400	5500	10600	27500	940	3850	5100	2100
SGL3547	F-618875.SGL	0.024	35	47	7	40	42	20.5	–	40	42	48	1	4800	6400	11500	32000	1110	4500	4600	1800
SGL4052	F-557493.SGL	0.026	40	52	7	45.5	46.5	23	1808	45.5	46.5	53	1	6900	9600	16600	48000	1650	6700	4300	1600
SGL4558	F-238341.SGL	0.033	45	58	7	51	52.2	25.75	1809	51	52.2	59	1	7600	11200	18200	56000	1950	7900	3900	1400
SGL5065	F-557494.SGL	0.042	50	65	7	57.3	57.7	28.75	1810	57.3	57.7	66	1	9900	14900	23700	75000	1730	7000	3600	1300
SGL6078	F-238166.SGL	0.085	60	78	10	68	70	34.5	1812	68	70	79	1	14300	21700	34500	109000	2500	10200	3200	1100
SGL6585	F-557495.SGL	0.106	65	85	10	75	77	37.5	1813	75	77	86	1	15000	23900	36000	119000	2750	11200	3000	1000
SGL80100	F-238167.SGL	0.12	80	100	10	90	92	45	1816	90	92	101	1.5	16600	29000	40000	144000	3350	13600	2500	850
SGL85110	F-587396.SGL	0.228	85	110	13	96	99	48.75	1817	96	99	111	1.5	21400	36000	51000	180000	4350	17700	2400	750
SGL98130	F-238584.SGL	0.42	98	130	16	113	115	57	–	113	115	131	1.5	37000	63000	89000	315000	7700	31000	2200	650
SGL105130	F-240120.SGL	0.269	105	130	13	116.5	118.5	58.75	1821	116.5	118.5	131	1.5	28500	52000	68000	260000	6000	24400	2000	600
SGL130165	F-631562.SGL	0.64	130	165	17.5	146	149	73.75	–	146	149	166	1.5	49000	90000	118000	450000	8600	35000	1800	500
SGL140175	F-550953.SGL	0.69	140	175	18	156	159	78.75	1828	156	159	176	1.5	50000	95000	121000	475000	9000	36500	1700	450
SGL180225	F-550954.SGL	1.44	180	225	22	200	205	101.25	1836	200	205	226	2	75000	151000	181000	750000	14400	58000	1500	350
SGL200250	F-565516.SGL	1.93	200	250	24	222.5	227.5	112.5	1840	222.5	227.5	251	2	100000	199000	240000	990000	19000	77000	1300	300
SGL240310	F-571366.SGL	4.55	240	310	33	272	278	137.5	–	272	278	311	2.5	153000	320000	370000	1600000	31000	125000	1200	250
SGL260320	F-555613.SGL	3	260	320	30	287	293	145	–	287	293	321	2.5	126000	280000	305000	1390000	25500	103000	1100	250
SGL290330	F-614821.SGL	1.78	290	330	20	307.4	312.6	155	–	307.4	312.6	331	2.5	84000	217000	203000	1090000	17600	72000	1000	200
SGL340400	F-565223.SGL	4.85	340	400	30	367	373	185	–	367	373	401	3	181000	440000	435000	2200000	39000	158000	900	200

Key Performance Advantages

High Axial Rigidity Structure

The optimized roller geometry increases the effective contact area between rollers and raceways.
This design reduces elastic deformation and significantly improves load-bearing stability, helping maintain accurate positioning under heavy axial force.

Precision Raceway Grinding

All raceways are manufactured using automated grinding lines and strict dimensional control systems.

This results in:

Lower operating noise
Reduced friction heat
Improved surface fatigue resistance
Minimal micro-vibration

These advantages are especially important for CNC machinery and high-speed automation systems.

Stable Material Performance

The Axial Angular Contact Roller Bearings SGL Series is ideal for systems requiring high-precision axial control and stable rotation, including:

High wear resistance
Stable dimensional accuracy
Strong fatigue life performance
Excellent anti-deformation capability

Optional material and surface treatments are available for humid, corrosive, or special operating environments.

Manufacturing & Quality Control

BMT Bearings operates a fully controlled production system aligned with ISO9001 and IATF16949 standards.

Our production capabilities include:

Automated precision grinding lines
Fully automated assembly systems
Noise and vibration testing equipment
Roundness and surface roughness inspection tools
Life cycle and clearance testing systems

Each batch of SGL Series bearings undergoes full inspection before shipment to ensure consistent performance and reliability.

Typical Applications

The Axial Angular Contact Roller Bearings SGL Series is ideal for systems requiring high precision axial control and stable rotation, including:

CNC machine tool spindles
Rotary indexing tables
Precision automation equipment
Injection molding machines
Servo-driven heavy-load systems
Vertical grinding machines
Industrial robotics
High-load transmission assemblies

In continuous production environments, stable axial performance helps reduce downtime and maintenance frequency.

SGL Series vs Standard Thrust Bearings

Performance Factor	Standard Thrust Bearings	SGL Series Bearings
Axial Load Capacity	Medium	High
Positioning Accuracy	Standard	Precision Grade
High-Speed Stability	Moderate	High Stability
Structural Rigidity	Lower	Higher
Heat Resistance	General	Improved
Continuous Operation	Average	Stable & Long-Life

Recommended Operating Conditions

The SGL Series is recommended for:

Continuous industrial operation
High axial load systems
Precision positioning equipment
Low-vibration requirements
Frequent start-stop applications

For extreme environments (dust, humidity, high temperature), lubrication and sealing configuration should be matched to operating conditions.

OEM & Global Supply Capability

BMT Bearings supports long-term OEM and export cooperation across Europe, Southeast Asia, South America, and the Middle East.

We provide:

OEM customization
Laser marking
Private labeling & packaging
Technical parameter adjustment
Bulk production supply

Our focus is not only on cost efficiency, but on long-term stability, consistency, and operational reliability for industrial users.
