W208PP10 Round Bore Agricultural Bearings

Technical Parameters

BMT Company's Motorcycle crankshaft bearings series includes these 10 continuous models (MGB-001 to MGB-010), with main dimensions (inner d x outer D x width B in mm), dynamic load rating (C in kN), and static load rating (C0 in kN), per ISO 15 standards.

These parameters enable robust performance in high-torque applications, with fatigue life surpassing 5x10^6 cycles.

Key Product Features

1. High-Strength Structural Design

Manufactured from premium 52100 chrome bearing steel, offering high hardness and exceptional wear resistance to withstand prolonged operation under heavy loads.

2. Triple-Seal Protection System

Features an upgraded triple-lip seal structure that effectively prevents the ingress of mud, moisture, fertilizers, and dust into the bearing interior, thereby significantly extending its service life.

3. Precision Round Bore Design

Features a standard round bore size compatible with the shaft diameters of mainstream agricultural machinery. This ensures easy installation, stable operation, and minimized issues related to vibration and eccentricity.

4. High Impact Resistance

Optimized raceway structure design allows for the uniform distribution of impact loads, making it highly suitable for demanding field operation environments.

5. Long-Life Lubrication System

Pre-filled at the factory with high-quality grease to ensure long-term, stable operation. This reduces maintenance frequency and makes the bearing ideal for use in remote agricultural areas.

6. Corrosion and Contamination Resistance

Designed to withstand exposure to moisture, corrosive fertilizers, and muddy water environments, effectively extending the overall operational lifespan of the machinery.

Technical Specifications

Model: W208PP10

Structure Type: Round Bore Agricultural Bearing

Inner Diameter: 38.113 mm (1.500 in)

Outer Diameter: 80 mm

Width: Approx. 42.87 mm

Material: 52100 High-Carbon Chromium Bearing Steel

Seal Structure: Triple-Lip Seal (High Protection Level)

Lubrication: Factory Pre-lubricated

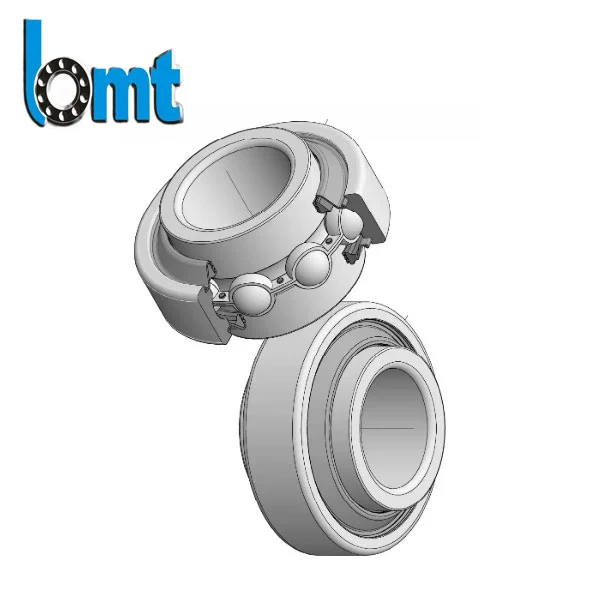

Structure Type: Single-Row Deep Groove Ball Agricultural Bearing

Operating Conditions: Medium-to-Low Speed, Heavy-Load Agricultural Machinery

Application Fields

W208PP10 Round Bore Agricultural Bearings are widely used in:

Disc Harrows and Tillage Equipment

Rotary Tillers and Soil Preparation Machinery

Precision Seeding Systems

Combine Harvesters and Forage Equipment

Balers and Hay & Forage Machinery

Grain Conveying and Elevating Systems

Agricultural Irrigation and Transmission Systems

Suitable for continuous operation environments characterized by high impact loads, high dust levels, and high humidity.

Why Choose BMT Agricultural Bearings?

As a professional bearing manufacturer, BMT offers:

ISO9001 & IATF16949 Internationally Certified Production Systems

Fully Automated Grinding and Assembly Production Lines

Comprehensive Quality Control from Raw Materials to Finished Products

Extensive Experience in Long-Term Partnerships with Global Agricultural Machinery OEMs

Stable Supply Capability with an Annual Production Volume Exceeding 100 Million Sets

We are dedicated to providing agricultural clients worldwide with bearing solutions characterized by high reliability, low maintenance costs, and extended service life.

Product Core Advantages

Service life increased by 2–3 times

Significantly enhanced resistance to mud and sand, as well as waterproofing capabilities

Reduced equipment downtime and maintenance costs

Improved operational stability and efficiency of agricultural machinery

Sealing structure design superior to that of standard industrial bearings

Installation and Maintenance Recommendations

To ensure optimal performance, please adhere to the following guidelines:

Before Installation

Clean the shaft and housing

Ensure no residual mud, sand, or impurities remain

During Installation

Install according to standard round-bore specifications

Avoid forceful hammering to prevent structural damage

During Operation

Periodically inspect temperature and operating status

Replenish grease as appropriate based on operating conditions

Storage Conditions

Store in a dry, well-ventilated environment

Avoid prolonged exposure to humid conditions to prevent corrosion

BMT Manufacturing Commitment

BMT Bearing consistently upholds the principles of:

Quality First

Credibility First

Service First

We provide not only W208PP10 Round Bore Agricultural Bearings but also comprehensive solutions to ensure the long-term, stable operation of agricultural machinery.
