Why Are GW208PPB5 Square Bore Agricultural Bearings a Smart Choice for Demanding Farm Machinery

When agricultural machinery operates through mud, dust, moisture, vibration, and heavy shock loads, bearing reliability directly affects productivity. BMT develops GW208PPB5 Square Bore Agricultural Bearings for demanding equipment such as disc harrows, cultivators, and seed drills, combining a precision square-bore design, robust construction, advanced sealing, and dependable load-carrying performance.

GW208PPB5 Square Bore Agricultural Bearings are designed to provide stable shaft support and efficient torque transmission in agricultural machinery. Unlike conventional round-bore bearing arrangements that may require additional components for shaft engagement, the square bore is designed to match a square shaft and reduce the risk of slippage during operation.

Table of Contents

• What Are GW208PPB5 Square Bore Agricultural Bearings?
• What Are the Key Technical Specifications?
• What Makes the Square-Bore Design Different?
• What Are the Main Performance Advantages?
• Where Are These Agricultural Bearings Used?
• How Should GW208PPB5 Bearings Be Installed and Maintained?
• How Can Buyers Select the Right Agricultural Bearing?
• Why Choose BMT as an Agricultural Bearing Manufacturer?
• Frequently Asked Questions
• Conclusion

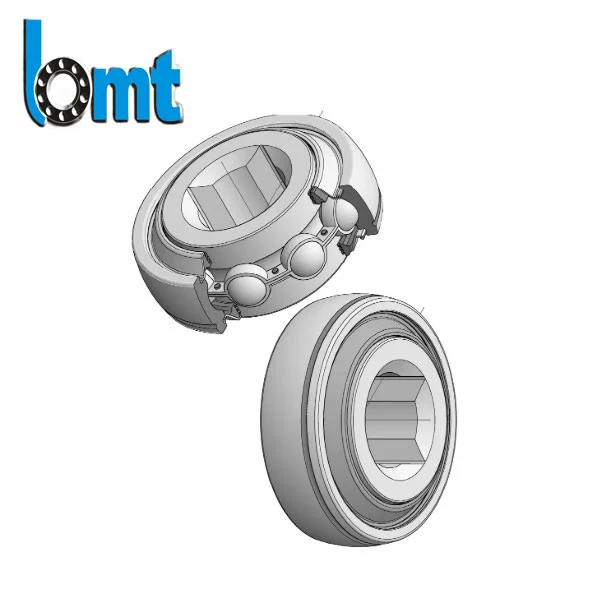

What Are GW208PPB5 Square Bore Agricultural Bearings?

GW208PPB5 Square Bore Agricultural Bearings are specialized bearing units developed for rotating shafts in agricultural equipment exposed to challenging operating conditions. Their square-bore configuration is designed to work with a corresponding square shaft, creating a secure mechanical connection that supports effective torque transfer.

According to BMT's product information, the GW208PPB5 model has a 28.575 mm shaft size, an 80 mm outer diameter, and a 21 mm bearing width reference in its dimensional data. Its listed dynamic and static load ratings are 7,340 and 3,650 respectively. The product is intended for agricultural applications where vibration, impact, contamination, and changing weather conditions can place significant demands on rotating components.

The bearing is particularly relevant to machinery such as disc harrows, cultivators, seed drills, and other implements that require dependable shaft rotation during long working cycles.

For buyers researching product specifications, the GW208PPB5 product page provides a useful reference for dimensions, performance features, installation requirements, and related models.

What Are the Key Technical Specifications?

Technical compatibility is one of the most important considerations when purchasing agricultural bearings. Even a high-quality bearing can perform poorly if its bore, dimensions, load capacity, or installation arrangement does not match the machinery.

Buyers should always compare the bearing dimensions and shaft interface against the original equipment requirements rather than relying on the product name alone. This is particularly important when replacing bearings across different machinery generations or manufacturers.

What Makes the Square-Bore Design Different?

The defining characteristic of GW208PPB5 Square Bore Agricultural Bearings is the square shaft interface. This configuration is intended to provide a positive connection between the bearing and shaft, helping reduce relative movement and improve torque transmission.

Agricultural equipment frequently experiences sudden changes in load. Soil resistance, stones, uneven terrain, crop material, and starting or stopping cycles can all generate shock loads. A secure shaft-to-bearing interface can therefore contribute to more stable mechanical operation.

BMT's design also incorporates several features intended for agricultural environments:

• Heavy-duty construction: A high-strength cast iron housing and hardened steel liner structure are designed to resist impact and deformation.
• Square-bore anti-slip mechanism: The matching square shaft interface helps improve torque transmission and reduce shaft slippage.
• Triple sealing protection: The product is specified with an IP69K-rated sealing system designed to limit the entry of mud, dust, fertilizer, and moisture.
• Wide-temperature lubrication: High-performance synthetic grease is specified for a broad temperature range.
• Micro-alignment capability: The bearing design is intended to accommodate limited shaft misalignment during operation.
• Anti-corrosion protection: Additional surface protection supports use in humid and potentially corrosive agricultural environments.

What Are the Main Performance Advantages?

Reliable Torque Transmission

The square bore is designed to engage directly with a compatible square shaft. This can reduce the risk of rotational slippage and provide a more dependable connection between the shaft and bearing assembly.

Protection Against Agricultural Contamination

Bearings used in farming equipment may encounter soil, water, fertilizers, crop residue, and airborne dust. Effective sealing is therefore essential. The specified triple sealing structure is designed to protect internal bearing components from contamination while retaining lubricant.

Support for Heavy-Duty Operation

Agricultural machinery often operates for extended periods during planting and harvesting seasons. The combination of hardened steel components and a heavy-duty housing is intended to withstand repeated loads and vibration.

Reduced Maintenance Requirements

Proper sealing and lubrication can help limit premature wear. BMT recommends NLGI No. 2 grease at intervals of approximately every 250 operating hours, subject to the actual operating environment and equipment manufacturer's requirements.

Potentially Lower Total Ownership Cost

For agricultural equipment operators, the cost of a bearing is only one part of the purchasing decision. Downtime, labor, replacement frequency, and damage to surrounding components can have a greater economic impact. Selecting a properly matched bearing can therefore support a more predictable maintenance strategy.

Where Are These Agricultural Bearings Used?

GW208PPB5 Square Bore Agricultural Bearings are suitable for machinery requiring reliable shaft rotation and bearing support in demanding field conditions.

• Disc harrows: Support rotating assemblies exposed to soil resistance and impact.
• Cultivators: Provide shaft support during continuous soil preparation operations.
• Seed drills: Help maintain stable rotation in planting mechanisms.
• General farm implements: Suitable for agricultural machines requiring a compatible square-shaft bearing configuration.
• Replacement applications: Can be considered when the original bearing has reached the end of its service life and the dimensional requirements are verified.

For equipment from major agricultural machinery manufacturers, buyers should confirm the exact shaft dimensions, housing arrangement, bearing clearance, and installation configuration before ordering. BMT indicates compatibility with selected equipment from manufacturers such as John Deere and Case, but model-specific verification remains important.

How Should GW208PPB5 Bearings Be Installed and Maintained?

Correct installation is just as important as bearing quality. Misalignment, excessive force, contamination, or incorrect tightening can shorten bearing life even when the bearing itself meets the required specifications.

Installation Recommendations

1. Clean the shaft end and mounting surface thoroughly before installation.
2. Check the square shaft for burrs, deformation, corrosion, or excessive wear.
3. Apply a suitable anti-seize compound where recommended.
4. Align the square bore carefully with the square shaft.
5. Ensure the bearing seats correctly against the intended locating surface.
6. Tighten the lock nut according to the recommended torque range of approximately 20–30 Nm.
7. Rotate the assembly manually to confirm smooth movement before returning the machine to service.

Maintenance Recommendations

• Inspect seals regularly for damage or contamination.
• Check the shaft and mounting points for abnormal wear.
• Monitor unusual noise, vibration, temperature, or resistance during operation.
• Apply NLGI No. 2 grease at the recommended service interval.
• Keep replacement bearings in a dry storage environment.
• Replace bearings promptly if severe play, damage, overheating, or abnormal noise is detected.

BMT specifies a maximum allowable angular misalignment of ≤1° and a temperature limit below 90°C for the operating recommendations listed for this product. Actual service conditions should always be evaluated against the machinery manufacturer's requirements.

How Can Buyers Select the Right Agricultural Bearing?

Procurement teams and machinery manufacturers should evaluate more than the bearing model number when sourcing agricultural bearings from a China supplier or global manufacturer.

A practical selection checklist includes:

• Verify shaft size: Confirm that the square bore matches the shaft precisely.
• Check outer dimensions: Compare the bearing diameter and width with the existing housing.
• Evaluate load requirements: Consider both dynamic and static loading conditions.
• Review environmental exposure: Mud, water, fertilizer, dust, and temperature changes should be considered.
• Confirm sealing requirements: Severe agricultural environments require effective contamination protection.
• Check lubrication procedures: Ensure the selected bearing fits the equipment's maintenance schedule.
• Consider traceability: Batch identification and quality records can be valuable for OEM and distributor procurement.
• Assess supplier capabilities: Quality systems, production equipment, inspection procedures, and technical support can influence long-term purchasing reliability.

Why Choose BMT as an Agricultural Bearing Manufacturer?

BMT combines more than 20 years of bearing manufacturing experience with automated grinding and assembly capabilities. Its agricultural bearing production is supported by ISO 9001 and IATF 16949 quality management systems, while inspection procedures are used to verify product consistency.

For international distributors, OEMs, machinery manufacturers, and replacement-parts buyers, supplier capability is particularly important when purchasing agricultural bearings in volume. Consistent dimensions, traceable production batches, stable quality, and responsive technical communication can simplify procurement and aftermarket support.

BMT's GW208PPB5 offering is positioned around several purchasing advantages:

• Specialized agricultural bearing engineering experience
• Automated grinding and assembly production
• ISO 9001 and IATF 16949 quality management systems
• Comprehensive product inspection procedures
• Experience serving international OEM customers
• Product traceability through batch identification
• Support for sample evaluation and bulk procurement

These factors make BMT a potential partner for buyers seeking agricultural bearings for both replacement and OEM applications.

Frequently Asked Questions

What is the shaft size of GW208PPB5 Square Bore Agricultural Bearings?

The listed shaft size is 28.575 mm, corresponding to a 1-inch square bore. Buyers should verify the actual shaft dimensions before ordering replacement bearings.

What is the difference between GW208PPB5 and GW208PPB6?

The key difference is the shaft size. GW208PPB5 is specified with a 28.575 mm square bore, while GW208PPB6 uses a 25.4 mm square bore. Their listed load ratings are the same, so shaft compatibility is an important selection factor.

Can GW208PPB5 bearings be used in muddy agricultural environments?

Yes. The product is designed for harsh agricultural environments and incorporates a specified IP69K-rated triple sealing system intended to protect against mud, dust, fertilizer, and moisture. Actual performance depends on installation, maintenance, operating conditions, and seal integrity.

How often should GW208PPB5 bearings be lubricated?

BMT recommends applying NLGI No. 2 grease every 250 operating hours. In practice, lubrication intervals should also consider operating speed, contamination, temperature, load, and the equipment manufacturer's maintenance schedule.

What should buyers verify before purchasing GW208PPB5?

Buyers should verify the square shaft size, mounting dimensions, load requirements, sealing requirements, operating environment, lubrication requirements, and equipment compatibility. For large orders, requesting samples and technical documentation can further reduce procurement risk.

Conclusion

GW208PPB5 Square Bore Agricultural Bearings are designed for agricultural machinery where secure shaft engagement, contamination protection, load capacity, and long-term operating stability are essential. With a 28.575 mm square bore, 80 mm outer diameter, heavy-duty construction, advanced sealing, and agricultural-focused design, the bearing provides a practical solution for demanding rotating applications.

For OEMs, distributors, equipment manufacturers, and agricultural machinery maintenance teams, selecting the right bearing is ultimately about achieving reliable equipment performance and predictable maintenance. If you are evaluating GW208PPB5 Square Bore Agricultural Bearings for your machinery or looking for a dependable China agricultural bearing manufacturer, contact us to discuss specifications, compatibility, samples, bulk orders, and customized bearing requirements.
