Mounted Bearings and Housings

BMT Bearings manufactures Mounted Bearings and Housings for conveyor systems, agricultural machinery, pumps, fans, packaging equipment, and industrial transmission systems. By combining precision bearing inserts with robust housing units, our mounted bearing assemblies simplify installation, maintain shaft alignment, reduce vibration, and improve equipment reliability. Available in cast iron and pressed steel configurations, BMT mounted units are designed for continuous operation in dusty, humid, and heavy-load environments.

Send Inquiry

Product Description

In many industrial applications, bearing failures are often caused by installation errors, shaft misalignment, housing deformation, contamination, or insufficient maintenance rather than the bearing itself.

To address these challenges, BMT supplies complete mounted bearing units that integrate the bearing insert and housing into a single assembly. This design helps maintain accurate shaft positioning while simplifying installation and replacement procedures.

Compared with conventional bearing arrangements, Mounted Bearings and Housings require less installation time and allow faster maintenance, making them widely used in conveyor systems, agricultural equipment, fans, pumps, and automated production lines.

Mounted Bearings And Housings

Technical Parameters

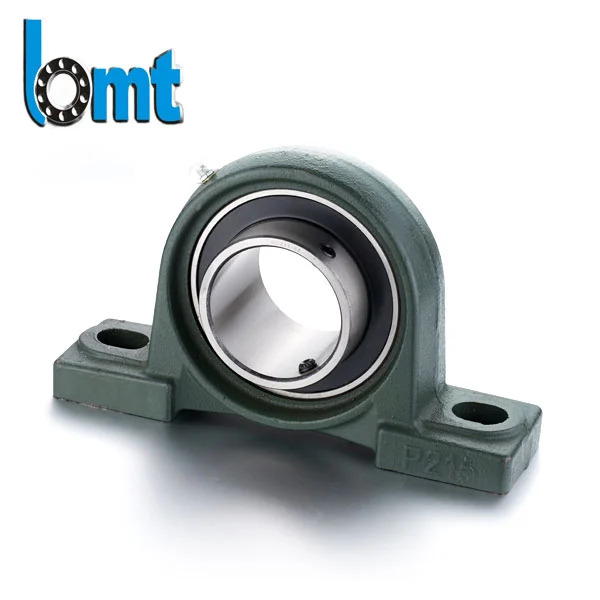

Pillow Block: UCP200, 300

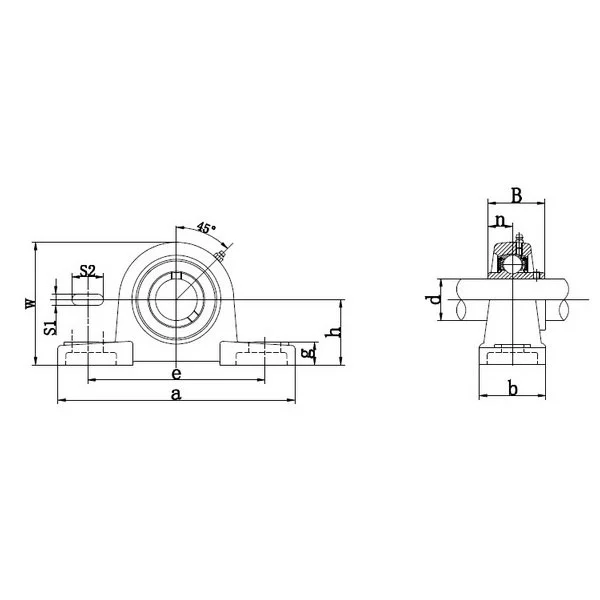

Unit NO.	Shaft Dia d	Dimensions(mm)										BoltSizemminch	BearingNo.	Housing No.
Unit NO.	mm	h	a	e	b	S1	S2	g	w	B	n	BoltSizemminch	BearingNo.	Housing No.
UCP201	12	30.2	127	95	38	13	19	14	61	31	12.7	M10	UC201	P203
UCP201-8		30.2	127	95	38	13	19	14	61	31	12.7	3/8	UC201-8	P203
UCP202	15	30.2	127	95	38	13	19	14	61	31	12.7	M10	UC202	P203
UCP202-9		30.2	127	95	38	13	19	14	61	31	12.7	3/8	UC202-9	P203
UCP202-10		30.2	127	95	38	13	19	14	61	31	12.7	3/8	UC202-10	P203
UCP203	17	30.2	127	95	38	13	19	14	61	31	12.7	M10	UC203	P203
UCP203-11		30.2	127	95	38	13	19	14	61	31	12.7	3/8	UC203-11	P203
UCP204	20	33.3	127	95	38	13	19	14	64	31	12.7	M10	UC204	P204
UCP204-12		33.3	127	95	38	13	19	14	64	31	12.7	3/8	UC204-12	P204
UCP205	25	36.5	140	105	38	13	19	15	70	34	14.3	M10	UC205	P205
UCP205-13		36.5	140	105	38	13	19	15	70	34	14.3	44628	UC205-13	P205
UCP205-14		36.5	140	105	38	13	19	15	70	34	14.3	44628	UC205-14	P205
UCP205-15		36.5	140	105	38	13	19	15	70	34	14.3	44628	UC205-15	P205
UCP205-16		36.5	140	105	38	13	19	15	70	34	14.3	44628	UC205-16	P205
UCP206	30	42.9	165	121	48	17	20	17	82	38.1	15.9	M14	UC206	P206
UCP206-17		42.9	165	121	48	17	20	17	82	38.1	15.9	1/2	UC206-17	P206
UCP206-18		42.9	165	121	48	17	20	17	82	38.1	15.9	1/2	UC206-18	P206
UCP206-19		42.9	165	121	48	17	20	17	82	38.1	15.9	1/2	UC206-19	P206
UCP206-20		42.9	165	121	48	17	20	17	82	38.1	15.9	1/2	UC206-20	P206
UCP207	35	47.6	167	127	48	17	21	18	93	42.9	17.5	M14	UC207	P207
UCP207-20		47.6	167	127	48	17	21	18	93	42.9	17.5	1/2	UC207-20	P207
UCP207-21		47.6	167	127	48	17	21	18	93	42.9	17.5	1/2	UC207-21	P207
UCP207-22		47.6	167	127	48	17	21	18	93	42.9	17.5	1/2	UC207-22	P207
UCP207-23		47.6	167	127	48	17	21	18	93	42.9	17.5	1/2	UC207-23	P207
UCP208	40	49.2	184	137	54	17	21	18	98	49.2	19	M14	UC208	P208
UCP208-24		49.2	184	137	54	17	21	18	98	49.2	19	1/2	UC208-24	P208
UCP208-25		49.2	184	137	54	17	21	18	98	49.2	19	1/2	UC208-25	P208
UCP209	45	54	190	146	54	17	21	20	106	49.2	19	M14	UC209	P209
UCP209-26		54	190	146	54	17	21	20	106	49.2	19	1/2	UC209-26	P209
UCP209-27		54	190	146	54	17	21	20	106	49.2	19	1/2	UC209-27	P209
UCP209-28		54	190	146	54	17	21	20	106	49.2	19	1/2	UC209-28	P209
UCP210	50	57.2	206	159	60	20	25	21	113	51.6	19	M16	UC210	P210
UCP210-29		57.2	206	159	60	20	25	21	113	51.6	19	5/8	UC210-29	P210
UCP210-30		57.2	206	159	60	20	25	21	113	51.6	19	5/8	UC210-30	P210
UCP210-31		57.2	206	159	60	20	25	21	113	51.6	19	5/8	UC210-31	P210
UCP210-32		57.2	206	159	60	20	25	21	113	51.6	19	5/8	UC210-32	P210
UCP211	55	63.5	219	171	60	20	25	23	124	55.6	22.2	M16	UC211	P211
UCP211-32		63.5	219	171	60	20	25	23	124	55.6	22.2	5/8	UC211-32	P211
UCP211-33		63.5	219	171	60	20	25	23	124	55.6	22.2	5/8	UC211-33	P211
UCP211-34		63.5	219	171	60	20	25	23	124	55.6	22.2	5/8	UC211-34	P211
UCP211-35		63.5	219	171	60	20	25	23	124	55.6	22.2	5/8	UC211-35	P211
UCP212	60	69.8	241	184	70	20	25	25	138	65.1	25.4	M16	UC212	P212
UCP212-36		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-36	P212
UCP212-37		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-37	P212
UCP212-38		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-38	P212
UCP212-39		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-39	P212
UCP213	65	76.2	265	203	70	25	30	27	151	65.1	25.4	M20	UC213	P213
UCP213-40		76.2	265	203	70	25	30	27	151	65.1		3/4	UC213-40	P213
UCP213-41		76.2	265	203	70	25	30	27	151	65.1		3/4	UC213-41	P213
UCP214	70	79.4	266	210	72	25	30	27	155	74.6	30.2	M20	UC214	P214
UCP214-42		79.4	266	210	72	25	30	27	155	74.6	30.2	3/4	UC214-42	P214
UCP214-43		79.4	266	210	72	25	30	27	155	74.6	30.2	3/4	UC214-43	P214
UCP214-44		79.4	266	210	72	25	30	27	155	74.6	30.2	3/4	UC214-44	P214
UCP215	75	82.6	275	217	74	25	30	28	162	77.8	33.3	M20	UC215	P215
UCP215-45		82.6	275	217	74	25	30	28	162	77.8	33.3	3/4	UC215-45	P215
UCP215-46		82.6	275	217	74	25	30	28	162	77.8	33.3	3/4	UC215-46	P215
UCP215-47		82.6	275	217	74	25	30	28	162	77.8	33.3	3/4	UC215-47	P215
UCP215-48		82.6	275	217	74	25	30	28	162	77.8	33.3	3/4	UC215-48	P215
UCP216	80	88.9	292	232	78	25	30	30	174	82.6	33.3	M20	UC216	P216
UCP216-49		88.9	292	232	78	25	30	30	174	82.6	33.3	3/4	UC216-49	P216
UCP216-50		88.9	292	232	78	25	30	30	174	82.6	33.3	3/4	UC216-50	P216
UCP216-51		88.9	292	232	78	25	30	30	174	82.6	33.3	3/4	UC216-51	P216
UCP217	85	95.2	310	247	83	25	30	32	185	85.7	34.1	M20	UC217	P217
UCP217-52		95.2	310	247	83	25	30	32	185	85.7	34.1	3/4	UC217-52	P217
UCP217-53		95.2	310	247	83	25	30	32	185	85.7	34.1	3/4	UC217-53	P217
UCP217-55		95.2	310	247	83	25	30	32	185	85.7	34.1	3/4	UC217-55	P217
UCP218	90	101.6	327	262	88	27	33	33	198	96	39.7	M22	UC218	P218
UCP218-56		101.6	327	262	88	27	33	33	198	96	39.7	7/8	UC218-56	P218
UCP305	25	45	175	132	45	17	20	15	85	38	15	M14	UC305	P305
UCP305-14		45	175	132	45	17	20	15	85	38	15	1/2	UC305-14	P305
UCP305-15		45	175	132	45	17	20	15	85	38	15	1/2	UC305-15	P305
UCP305-16		45	175	132	45	17	20	15	85	38	15	1/2	UC305-16	P305
UCP306	30	50	180	140	50	17	20	18	95	43	17	M14	UC306	P306
UCP306-18		50	180	140	50	17	20	18	95	43	17	1/2	UC306-18	P306
UCP306-19		50	180	140	50	17	20	18	95	43	17	1/2	UC306-19	P306
UCP307	35	56	210	160	56	17	25	20	106	48	19	M14	UC307	P307
UCP307-20		56	210	160	56	17	25	20	106	48	19	1/2	UC307-20	P307
UCP307-21		56	210	160	56	17	25	20	106	48	19	1/2	UC307-21	P307
UCP307-22		56	210	160	56	17	25	20	106	48	19	1/2	UC307-22	P307
UCP307-23		56	210	160	56	17	25	20	106	48	19	1/2	UC307-23	P307
UCP308	40	60	220	170	60	17	27	22	116	52	19	M14	UC308	P308
UCP308-24		60	220	170	60	17	27	22	116	52	19	1/2	UC308-24	P308
UCP308-25		60	220	170	60	17	27	22	116	52	19	1/2	UC308-25	P308
UCP309	45	67	245	190	67	20	30	24	129	57	22	M16	UC309	P309
UCP309-26		67	245	190	67	20	30	24	129	57	22	5/8	UC309-26	P309
UCP309-27		67	245	190	67	20	30	24	129	57	22	5/8	UC309-27	P309
UCP309-28		67	245	190	67	20	30	24	129	57	22	5/8	UC309-28	P309
UCP310	50	75	275	212	75	20	35	27	143	61	22	M16	UC310	P310
UCP310-30		75	275	212	75	20	35	27	143	61	22	5/8	UC310-30	P310
UCP310-31		75	275	212	75	20	35	27	143	61	22	5/8	UC310-31	P310
UCP311	55	80	310	236	80	20	38	30	154	66	25	M16	UC311	P311
UCP311-32		80	310	236	80	20	38	30	154	66	25	5/8	UC311-32	P311
UCP311-34		80	310	236	80	20	38	30	154	66	25	5/8	UC311-34	P311
UCP311-35		80	310	236	80	20	38	30	154	66	25	5/8	UC311-35	P311
UCP312	60	85	330	250	85	25	38	32	165	71	26	M20	UC312	P312
UCP312-36		85	330	250	85	25	38	32	165	71	26	3/4	UC312-36	P312
UCP312-38		85	330	250	85	25	38	32	165	71	26	3/4	UC312-38	P312
UCP312-39		85	330	250	85	25	38	32	165	71	26	3/4	UC312-39	P312
UCP313	65	90	340	260	90	25	38	33	176	75	30	M20	UC313	P313
UCP313-40		90	340	260	90	25	38	33	176	75	30	3/4	UC313-40	P313
UCP314	70	95	360	280	90	27	40	35	187	78	33	M22	UC314	P314
UCP314-44		95	360	280	90	27	40	35	187	78	33	7/8	UC314-44	P314
UCP315	75	100	380	290	100	27	40	35	198	82	32	M22	UC315	P315
UCP315-48		100	380	290	100	27	40	35	198	82	32	7/8	UC315-48	P315
UCP316	80	106	400	300	110	27	40	40	210	86	34	M22	UC315	P316
UCP316-50		106	400	300	110	27	40	40	210	86	34	7/8	UC316-50	P316
UCP317	85	112	420	320	110	33	45	40	220	96	40	M27	UC317	P317
UCP317-52		112	420	320	110	33	45	40	220	96	40	1	UC317-52	P317
UCP318	90	118	430	330	110	33	45	45	235	96	40	M27	UC318	P318
UCP318-56		118	430	330	110	33	45	45	235	96	40	1	UC318-56	P318
UCP319	95	125	470	360	120	36	50	45	250	103	41	M30	UC319	P319
UCP319-60		125	470	360	120	36	50	45	250	103	41	2001/1/8	UC319-60	P319
UCP320	100	140	490	380	120	36	50	50	275	108	42	M30	UC320	P320
UCP320-64		140	490	380	120	36	50	50	275	108	42	2001/1/8	UC320-64	P320
UCP321		140	490	380	120	36	50	50	280	112	44	M30	UC321	P321
UCP322		150	520	400	140	40	55	55	300	117	46	M33	UC322	P322
UCP324		160	570	450	140	40	55	65	320	126	51	M33	UC324	P324
UCP326		180	600	480	140	40	55	75	355	135	54	M33	UC326	P326
UCP328		200	620	500	140	40	55	75	390	145	59	M33	UC328	P328

Pillow Block: UCPE, UCPX, UCPH
Unit N0.	Shaft Dia d	Dimensi0ns(mm)										B0ltSizemminch	Bearing N0.	H0using N0.
Unit N0.	mm	h	a	e	b	S1	S2	g	w	Bi	n	B0ltSizemminch	Bearing N0.	H0using N0.
UCPE201	12	33.3	127	95	38	13	16	15	65	31	12.7	M10	UC201	PE204
UCPE201-8		33.3	127	95	38	13	16	15	65	31	12.7	3/8	UC201-8	PE204
UCPE202	15	33.3	127	95	38	13	16	15	65	31	12.7	M10	UC202	PE204
UCPE202-9		33.3	127	95	38	13	16	15	65	31	12.7	3/8	UC202-9	PE204
UCPE202-10		33.3	127	95	38	13	16	15	65	31	12.7	3/8	UC202-10	PE204
UCPE203	17	33.3	127	95	38	13	16	15	65	31	12.7	M10	UC203	PE204
UCPE203-11		33.3	127	95	38	13	16	15	65	31	12.7	3/8	UC203-11	PE204
UCPE204	20	33.3	127	95	38	13	16	15	65	31	12.7	M10	UC204	PE204
UCPE204-12		33.3	127	95	38	13	16	15	65	31	12.7	3/8	UC204-12	PE204
UCPE205	25	36.5	140	105	38	13	16	16	70	34.1	14.3	M10	UC205	PE205
UCPE205-13		36.5	140	105	38	13	16	16	70	34.1	14.3	3/8	UC205-13	PE205
UCPE205-14		36.5	140	105	38	13	16	16	70	34.1	14.3	3/8	UC205-14	PE205
UCPE205-15		36.5	140	105	38	13	16	16	70	34.1	14.3	3/8	UC205-15	PE205
UCPE205-16		36.5	140	105	38	13	16	16	70	34.1	14.3	3/8	UC205-16	PE205
UCPE206	30	42.9	165	121	48	17	21	18	83	38.1	15.9	M14	UC206	PE206
UCPE206-17		42.9	165	121	48	17	21	18	83	38.1	15.9	1/2	UC206-17	PE206
UCPE206-18		42.9	165	121	48	17	21	18	83	38.1	15.9	1/2	UC206-18	PE206
UCPE206-19		42.9	165	121	48	17	21	18	83	38.1	15.9	1/2	UC206-19	PE206
UCPE206-20		42.9	165	121	48	17	21	18	83	38.1	15.9	1/2	UC206-20	PE206
UCPE207	35	47.6	167	127	48	17	21	19	94	42.9	17.5	M14	UC207	PE207
UCPE207-20		47.6	167	127	48	17	21	19	94	42.9	17.5	1/2	UC207-20	PE207
UCPE207-20		47.6	167	127	48	17	21	19	94	42.9	17.5	1/2	UC207-21	PE207
UCPE207-20		47.6	167	127	48	17	21	19	94	42.9	17.5	1/2	UC207-22	PE207
UCPE207-20		47.6	167	127	48	17	21	19	94	42.9	17.5	1/2	UC207-23	PE207
UCPE208	40	49.2	184	137	54	17	25	19	100	49.2	19	M14	UC208	PE208
UCPE208-24		49.2	184	137	54	17	25	19	100	49.2	19	1/2	UC208-24	PE208
UCPE208-25		49.2	184	137	54	17	25	19	100	49.2	19	1/2	UC208-25	PE208
UCPE209	45	54	190	146	54	17	25	20	108	49.2	19	M14	UC209	PE209
UCPE209-26		54	190	146	54	17	25	20	108	49.2	19	1/2	UC209-26	PE209
UCPE209-27		54	190	146	54	17	25	20	108	49.2	19	1/2	UC209-27	PE209
UCPE209-28		54	190	146	54	17	25	20	108	49.2	19	1/2	UC209-28	PE209
UCPE210	50	57.2	206	159	60	20	25	22	114	51.6	19	M16	UC210	PE210
UCPE210-29		57.2	206	159	60	20	25	22	114	51.6	19	5/8	UC210-29	PE210
UCPE210-30		57.2	206	159	60	20	25	22	114	51.6	19	5/8	UC210-30	PE210
UCPE210-31		57.2	206	159	60	20	25	22	114	51.6	19	5/8	UC210-31	PE210
UCPE210-32		57.2	206	159	60	20	25	22	114	51.6	19	5/8	UC210-32	PE210
UCPE211	55	63.5	219	171	60	20	25	22	126	55.6	22.2	M16	UC211	PE211
UCPE211-32		63.5	219	171	60	20	25	22	126	55.6	22.2	5/8	UC211-32	PE211
UCPE211-33		63.5	219	171	60	20	25	22	126	55.6	22.2	5/8	UC211-33	PE211
UCPE211-34		63.5	219	171	60	20	25	22	126	55.6	22.2	5/8	UC211-34	PE211
UCPE211-35		63.5	219	171	60	20	25	22	126	55.6	22.2	5/8	UC211-35	PE211
UCPE212	60	69.8	241	184	70	20	25	25	138	65.1	25.4	M16	UC212	PE212
UCPE212-36		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-36	PE212
UCPE212-37		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-37	PE212
UCPE212-38		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-38	PE212
UCPE212-39		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-39	PE212
UCPE213	65	76.2	265	203	70	25	29	27	150	65.1	25.4	M20	UC213	PE213
UCPE213-40		76.2	265	203	70	25	29	27	150	65.1	25.4	3/4	UC213-40	PE213
UCPE213-41		76.2	265	203	70	25	29	27	150	65.1	25.4	3/4	UC213-41	PE213
UCPE214	70	79.4	266	210	72	25	31	27	156	74.6	30.2	M20	UC214	PE214
UCPE214-42		79.4	266	210	72	25	31	27	156	74.6	30.2	3/4	UC214-42	PE214
UCPE214-43		79.4	266	210	72	25	31	27	156	74.6	30.2	3/4	UC214-43	PE214
UCPE214-44		79.4	266	210	72	25	31	27	156	74.6	30.2	3/4	UC214-44	PE214
UCPE215	75	82.6	275	217	74	25	31	28	163	77.8	33.3	M20	UC215	PE215
UCPE215-45		82.6	275	217	74	25	31	28	163	77.8	33.3	3/4	UC215-45	PE215
UCPE215-46		82.6	275	217	74	25	31	28	163	77.8	33.3	3/4	UC215-46	PE215
UCPE215-47		82.6	275	217	74	25	31	28	163	77.8	33.3	3/4	UC215-47	PE215
UCPE215-48		82.6	275	217	74	25	31	28	163	77.8	33.3	3/4	UC215-48	PE215
UCPE216	80	88.9	292	232	78	25	31	30	175	82.6	33.3	M20	UC216	PE216
UCPE216-49		88.9	292	232	78	25	31	30	175	82.6	33.3	3/4	UC216-49	PE216
UCPE216-50		88.9	292	232	78	25	31	30	175	82.6	33.3	3/4	UC216-50	PE216
UCPE216-51		88.9	292	232	78	25	31	30	175	82.6	33.3	3/4	UC216-51	PE216
UCPE217	85	95.2	310	247	83	25	31	32	186	85.7	34.1	M20	UC217	PE217
UCPE217-52		95.2	310	247	83	25	31	32	186	85.7	34.1	3/4	UC217-52	PE217
UCPE217-53		95.2	310	247	83	25	31	32	186	85.7	34.1	3/4	UC217-53	PE217
UCPE217-55		95.2	310	247	83	25	31	32	186	85.7	34.1	3/4	UC217-55	PE217
UCPE218	90	101.6	327	262	88	27	33	33	198	96	39.7	M22	UC218	PE218
UCPE218-56		101.6	327	262	88	27	33	33	198	96	39.7	7/8	UC218-56	PE218
UCPX05	25	44.4	159	119	51	17	25	18	85	38.1	15.9	M14	UCX05	PX05
UCPX05-16		44.4	159	119	51	17	25	18	85	38.1	15.9	1/2	UCX05-16	PX05
UCPX06	30	47.6	175	127	57	17	25	20	94	42.9	17.5	M14	UCX06	PX06
UCPX06-19		47.6	175	127	57	17	25	20	94	42.9	17.5	1/2	UCX06-19	PX06
UCPX06-20		47.6	175	127	57	17	25	20	94	42.9	17.5	1/2	UCX06-20	PX06
UCPX07	35	54	203	144	57	17	30	22	105	49.2	19	M14	UCX07	PX07
UCPX07-22		54	203	144	57	17	30	22	105	49.2	19	1/2	UCX07-22	PX07
UCPX07-23		54	203	144	57	17	30	22	105	49.2	19	1/2	UCX07-23	PX07
UCPX08	40	58.7	222	156	67	20	32	26	113	49.2	19	M16	UCX08	PX08
UCPX08-24 UCPX08	2001/1/2	58.7	222	156	67	20	32	26	113	49.2	19	5/8	UCX08-24	PX08
UCPX09	45	58.7	222	156	67	20	33	26	116	51.6	19	M16	UCX09	PX09
UCPX09-26		58.7	222	156	67	20	33	26	116	51.6	19	5/8	UCX09-26	PX09
UCPX09-27		58.7	222	156	67	20	33	26	116	51.6	19	5/8	UCX09-27	PX09
UCPX09-28		58.7	222	156	67	20	33	26	116	51.6	19	5/8	UCX09-28	PX09
UCPX10	50	63.5	241	171	73	20	36	27	126	55.6	22.2	M16	UCX10	PX10
UCPX10-31		63.5	241	171	73	20	36	27	126	55.6	22.2	5/8	UCX10-31	PX10
UCPX10-32		63.5	241	171	73	20	36	27	126	55.6	22.2	5/8	UCX10-32	PX10
UCPX11	55	69.8	260	184	79	25	36	30	139	65.1	25.4	M20	UCX11	PX11
UCPX11-35		69.8	260	184	79	25	36	30	139	65.1	25.4	3/4	UCX11-35	PX11
UCPX12	60	76.2	286	203	83	25	41	32	151	65.1	25.4	M20	UCX12	PX12
UCPX12-38		76.2	286	203	83	25	41	32	151	65.1	25.4	3/4	UCX12-38	PX12
UCPX12-39		76.2	286	203	83	25	41	32	151	65.1	25.4	3/4	UCX12-39	PX12
UCPX13	65	76.2	286	203	83	25	41	32	154	74.6	30.2	M20	UCX13	PX13
UCPX13-40		76.2	286	203	83	25	41	32	154	74.6	30.2	3/4	UCX13-40	PX13
UCPX14	70	88.9	330	229	89	27	51	35	172	77.8	33.3	M22	UCX14	PX14
UCPX14-44		88.9	330	229	89	27	51	35	172	77.8	33.3	7/8	UCX14-44	PX14
UCPX15		88.9	330	229	89	27	51	35	177	82.6	33.3	M22	UCX15	PX15
UCPX15-47		88.9	330	229	89	27	51	35	177	82.6	33.3	7/8	UCX15-47	PX15
UCPX15-48		88.9	330	229	89	27	51	35	177	82.6	33.3	7/8	UCX15-48	PX15
UCPX16	80	101.6	381	283	102	27	59	42	197	85.7	34.1	M22	UCX16	PX16
UCPX16-50		101.6	381	283	102	27	59	42	197	85.7	34.1	7/8	UCX16-50	PX16
UCPX17	85	101.6	381	283	102	27	59	42	202	96	39.7	M22	UCX17	PX17
UCPX17-52		101.6	381	283	102	27	59	42	202	96	39.7	7/8	UCX17-52	PX17
UCPX18	90	101.6	381	283	111	27	60	45	206	104	42.9	M22	UCX18	PX18
UCPX18-56		101.6	381	283	111	27	60	45	206	104	42.9	7/8	UCX18-56	PX18
UCPX20	100	127	432	337	121	33	64	52	250	117.5	49.2	M30	UCX20	PX20
UCPX20-63		127	432	337	121	33	64	52	250	117.5	49.2	2001/1/8	UCX20-63	PX20
UCPX20-64		127	432	337	121	33	64	52	250	117.5	49.2	2001/1/8	UCX20-64	PX20
UCPH201	12	70	127	95	40	13	19	15	101	31	12.7	M10	UC201	PH204
UCPH202	15	70	127	95	40	13	19	15	101	31	12.7	M10	UC202	PH204
UCPH203	17	70	127	95	40	13	19	15	101	31	12.7	M10	UC203	PH204
UCPH204	20	70	127	95	40	13	19	15	101	31	12.7	M10	UC204	PH204
UCPH201-8		70	127	95	40	13	19	15	101	31	12.7	3/8	UC201-8	PH204
UCPH202-9		70	127	95	40	13	19	15	101	31	12.7	3/8	UC202-9	PH204
UCPH202-10		70	127	95	40	13	19	15	101	31	12.7	3/8	UC202-10	PH204
UCPH203-11		70	127	95	40	13	19	15	101	31	12.7	3/8	UC203-11	PH204
UCPH204-12		70	127	95	40	13	19	15	101	31	12.7	3/8	UC204-12	PH204
UCPH205	25	80	140	105	50	13	19	16	114	34	14.3	M10	UC205	PH205
UCPH205-13		80	140	105	50	13	19	16	114	34	14.3	3/8	UC205-13	PH205
UCPH205-14		80	140	105	50	13	19	16	114	34	14.3	3/8	UC205-14	PH205
UCPH205-15		80	140	105	50	13	19	16	114	34	14.3	3/8	UC205-15	PH205
UCPH205-16		80	140	105	50	13	19	16	114	34	14.3	3/8	UC205-16	PH205
UCPH206	30	90	165	121	50	17	21	18	130	38.1	15.9	M14	UC206	PH206
UCPH206-17		90	165	121	50	17	21	18	130	38.1	15.9	1/2	UC206-17	PH206
UCPH206-18		90	165	121	50	17	21	18	130	38.1	15.9	1/2	UC206-18	PH206
UCPH206-19		90	165	121	50	17	21	18	130	38.1	15.9	1/2	UC206-19	PH206
UCPH206-20		90	165	121	50	17	21	18	130	38.1	15.9	1/2	UC206-20	PH206
UCPH207	35	95	167	127	60	17	21	19	140	42.9	17.5	M14	UC207	PH207
UCPH207-20		95	167	127	60	17	21	19	140	42.9	17.5	1/2	UC207-20	PH207
UCPH207-21		95	167	127	60	17	21	19	140	42.9	17.5	1/2	UC207-21	PH207
UCPH207-22		95	167	127	60	17	21	19	140	42.9	17.5	1/2	UC207-22	PH207
UCPH207-23		95	167	127	60	17	21	19	140	42.9	17.5	1/2	UC207-23	PH207
UCPH208	40	100	184	137	70	17	25	19	149	49.2	19	M14	UC208	PH208
UCPH208-24		100	184	137	70	17	25	19	149	49.2	19	1/2	UC208-24	PH208
UCPH208-25		100	184	137	70	17	25	19	149	49.2	19	1/2	UC208-25	PH208
UCPH209	45	105	190	146	70	17	25	20	157	49.2	19	M14	UC209	PH209
UCPH209-26		105	190	146	70	17	25	20	157	49.2	19	1/2	UC209-26	PH209
UCPH209-27		105	190	146	70	17	25	20	157	49.2	19	1/2	UC209-27	PH209
UCPH209-28		105	190	146	70	17	25	20	157	49.2	19	1/2	UC209-28	PH209
UCPH210	50	110	206	159	70	20	25	22	165	51.6	19	M16	UC210	PH210
UCPH210-29		110	206	159	70	20	25	22	165	51.6	19	5/8	UC210-29	PH210
UCPH210-30		110	206	159	70	20	25	22	165	51.6	19	5/8	UC210-30	PH210
UCPH210-31		110	206	159	70	20	25	22	165	51.6	19	5/8	UC210-31	PH210
UCPH210-32		110	206	159	70	20	25	22	165	51.6	19	5/8	UC210-32	PH210
UCPH211	55	120	219	171	75	19	22	22	181	55.6	22.2	M16	UC211	PH211
UCPH211-32		120	219	171	75	19	22	22	181	55.6	22.2	5/8	UC211-32	PH211
UCPH211-33		120	219	171	75	19	22	22	181	55.6	22.2	5/8	UC211-33	PH211
UCPH211-34		120	219	171	75	19	22	22	181	55.6	22.2	5/8	UC211-34	PH211
UCPH211-35		120	219	171	75	19	22	22	181	55.6	22.2	5/8	UC211-35	PH211
UCPH212	60	130	235	184	85	19	23	25	197	65.1	25.4	M16	UC212	PH212
UCPH212-36		130	235	184	85	19	23	25	197	65.1	25.4	5/8	UC212-36	PH212
UCPH212-37		130	235	184	85	19	23	25	197	65.1	25.4	5/8	UC212-37	PH212
UCPH212-38		130	235	184	85	19	23	25	197	65.1	25.4	5/8	UC212-38	PH212
UCPH212-39		130	235	184	85	19	23	25	197	65.1	25.4	5/8	UC212-39	PH212
UCPH213	65	140	262	203	95	23	28	27	212	65.1	25.4	M20	UC213	PH213
UCPH213-40		140	262	203	95	23	28	27	212	65.1	25.4	3/4	UC213-40	PH213
UCPH213-41		140	262	203	95	23	28	27	212	65.1	25.4	3/4	UC213-41	PH213
UCPH214	70	150	268	210	105	23	28	28	225	74.6	30.2	M20	UC214	PH214
UCPH214-42		150	268	210	105	23	28	28	225	74.6	30.2	3/4	UC214-42	PH214
UCPH214-43		150	268	210	105	23	28	28	225	74.6	30.2	3/4	UC214-43	PH214
UCPH214-44		150	268	210	105	23	28	28	225	74.6	30.2	3/4	UC214-44	PH214
UCPH215	75	160	275	217	115	23	28	29	238	77.8	33.3	M20	UC215	PH215
UCPH215-45		160	275	217	115	23	28	29	238	77.8	33.3	3/4	UC215-45	PH215
UCPH215-46		160	275	217	115	23	28	29	238	77.8	33.3	3/4	UC215-46	PH215
UCPH215-47		160	275	217	115	23	28	29	238	77.8	33.3	3/4	UC215-47	PH215
UCPH215-48		160	275	217	115	23	28	29	238	77.8	33.3	3/4	UC215-48	PH215
UCPH216	80	170	290	232	125	23	28	30	253	82.6	33.3	M20	UC216	PH216
UCPH216-50		170	290	232	125	23	28	30	253	82.6	33.3	3/4	UC216-50	PH216

Pillow Block:UCPA, UCPG, UCPW
Unit NO.	Shaft Dia d	Dimensions (mm)										Bolt Size mm	Bearing No.	Housing No.
Unit NO.	mm	h	a	e	b	S	g	l	w	B	n		Bearing No.	Housing No.
UCPA201	12	30.2	76	52	38	M10	15	11	62	31	12.7	M10	UC201	PA204
UCPA201-8		30.2	76	52	38	M10	15	11	62	31	12.7	M10	UC201-8	PA204
UCPA202	15	30.2	76	52	38	M10	15	11	62	31	12.7	M10	UC202	PA204
UCPA202-9		30.2	76	52	38	M10	15	11	62	31	12.7	M10	UC202-9	PA204
UCPA202-10		30.2	76	52	38	M10	15	11	62	31	12.7	M10	UC202-10	PA204
UCPA203	17	30.2	76	52	38	M10	15	11	62	31	12.7	M10	UC203	PA204
UCPA203-11		30.2	76	52	38	M10	15	11	62	31	12.7	M10	UC203-11	PA204
UCPA204	20	30.2	76	52	38	M10	15	11	62	31	12.7	M10	UC204	PA204
UCPA204-12		30.2	76	52	38	M10	15	11	62	31	12.7	M10	UC204-12	PA204
UCPA205	25	36.5	84	56	38	M10	15	12	72	34.1	14.3	M10	UC205	PA205
UCPA205-13		36.5	84	56	38	M10	15	12	72	34.1	14.3	M10	UC205-13	PA205
UCPA205-14		36.5	84	56	38	M10	15	12	72	34.1	14.3	M10	UC205-14	PA205
UCPA205-15		36.5	84	56	38	M10	15	12	72	34.1	14.3	M10	UC205-15	PA205
UCPA205-16		36.5	84	56	38	M10	15	12	72	34.1	14.3	M10	UC205-16	PA205
UCPA206	30	42.9	94	66	48	M14	18	13	84	38.1	15.9	M14	UC206	PA206
UCPA206-17		42.9	94	66	48	M14	18	13	84	38.1	15.9	M14	UC206-17	PA206
UCPA206-18		42.9	94	66	48	M14	18	13	84	38.1	15.9	M14	UC206-18	PA206
UCPA206-19		42.9	94	66	48	M14	18	13	84	38.1	15.9	M14	UC206-19	PA206
UCPA206-20		42.9	94	66	48	M14	18	13	84	38.1	15.9	M14	UC206-20	PA206
UCPA207	35	47.6	110	80	48	M14	20	13	95	42.9	17.5	M14	UC207	PA207
UCPA207-20		47.6	110	80	48	M14	20	13	95	42.9	17.5	M14	UC207-20	PA207
UCPA207-21		47.6	110	80	48	M14	20	13	95	42.9	17.5	M14	UC207-21	PA207
UCPA207-22		47.6	110	80	48	M14	20	13	95	42.9	17.5	M14	UC207-22	PA207
UCPA207-23		47.6	110	80	48	M14	20	13	95	42.9	17.5	M14	UC207-23	PA207
UCPA208	40	49.2	116	84	54	M14	20	13	100	49.2	19	M14	UC208	PA208
UCPA208-24		49.2	116	84	54	M14	20	13	100	49.2	19	M14	UC208-24	PA208
UCPA208-25		49.2	116	84	54	M14	20	13	100	49.2	19	M14	UC208-25	PA208
UCPA209	45	54.2	120	90	54	M14	25	13	108	49.2	19	M14	UC209	PA209
UCPA209-26		54.2	120	90	54	M14	25	13	108	49.2	19	M14	UC209-26	PA209
UCPA209-27		54.2	120	90	54	M14	25	13	108	49.2	19	M14	UC209-27	PA209
UCPA209-28		54.2	120	90	54	M14	25	13	108	49.2	19	M14	UC209-28	PA209
UCPA210	50	57.2	130	94	60	M16	25	14	116	51.6	19	M16	UC210	PA210
UCPA210-29		57.2	130	94	60	M16	25	14	116	51.6	19	M16	UC210-29	PA210
UCPA210-30		57.2	130	94	60	M16	25	14	116	51.6	19	M16	UC210-30	PA210
UCPA210-31		57.2	130	94	60	M16	25	14	116	51.6	19	M16	UC210-31	PA210
UCPA210-32		57.2	130	94	60	M16	25	14	116	51.6	19	M16	UC210-32	PA210
UCPA211	55	63.5	140	104	66	M16	25	16	125	55.6	22.2	M16	UC211	PA211
UCPA211-32		63.5	140	104	66	M16	25	16	125	55.6	22.2	M16	UC211-32	PA211
UCPA211-33		63.5	140	104	66	M16	25	16	125	55.6	22.2	M16	UC211-33	PA211
UCPA211-34		63.5	140	104	66	M16	25	16	125	55.6	22.2	M16	UC211-34	PA211
UCPA211-35		63.5	140	104	66	M16	25	16	125	55.6	22.2	M16	UC211-35	PA211
UCPA212	60	69.9	150	114	68	M16	25	16	138	65.1	25.4	M16	UC212	PA212
UCPA212-36		69.9	150	114	68	M16	25	16	138	65.1	25.4	M16	UC212-36	PA212
UCPA212-37		69.9	150	114	68	M16	25	16	138	65.1	25.4	M16	UC212-37	PA212
UCPA212-38		69.9	150	114	68	M16	25	16	138	65.1	25.4	M16	UC212-38	PA212
UCPA212-39		69.9	150	114	68	M16	25	16	138	65.1	25.4	M16	UC212-39	PA212
UCPA213	65	76.2	160	124	70	M16	25	16	150	65.1	25.4	M16	UC213	PA213
UCPA213-40		76.2	160	124	70	M16	25	16	150	65.1	25.4	M16	UC213-40	PA213
UCPA213-41		76.2	160	124	70	M16	25	16	150	65.1	25.4	M16	UC213-41	PA213
UCPG201	12	30.2	55	38	30	M6	12	14	57	26	10	M6X1	UCW201	PG203
UCPG202	15	30.2	55	38	30	M6	12	14	57	26	10	M6X1	UCW202	PG203
UCPG203	17	30.2	55	38	30	M6	12	14	57	26	10	M6X1	UCW203	PG203
UCPG201-8		30.2	55	38	30	M6	12	14	57	26	10	M6X1	UCW201-8	PG203
UCPG202-9		30.2	55	38	30	M6	12	14	57	26	10	M6X1	UCW202-9	PG203
UCPG202-10		30.2	55	38	30	M6	12	14	57	26	10	M6X1	UCW202-10	PG203
UCPG203-11		30.2	55	38	30	M6	12	14	57	26	10	M6X1	UCW203-11	PG203
UCPG201	12	33.3	70	49	38	M8	15	14	64	31	12.7	M8X1.25	UC201	PG204
UCPG202	15	33.3	70	49	38	M8	15	14	64	31	12.7	M8X1.25	UC202	PG204
UCPG203	17	33.3	70	49	38	M8	15	14	64	31	12.7	M8X1.25	UC203	PG204
UCPG204	20	33.3	70	49	38	M8	15	14	64	31	12.7	M8X1.25	UC204	PG204
UCPG201-8		33.3	70	49	38	M8	15	14	64	31	12.7	M8X1.25	UC201-8	PG204
UCPG202-9		33.3	70	49	38	M8	15	14	64	31	12.7	M8X1.25	UC202-9	PG204
UCPG202-10		33.3	70	49	38	M8	15	14	64	31	12.7	M8X1.25	UC202-10	PG204
UCPG203-11		33.3	70	49	38	M8	15	14	64	31	12.7	M8X1.25	UC203-11	PG204
UCPG204-12		33.3	70	49	38	M8	15	14	64	31	12.7	M8X1.25	UC204-12	PG204
UCPG205	25	36.5	75	50	38	M10	15	15	70	34.1	14.3	M10X1.5	UC205	PG205
UCPG205-13		36.5	75	50	38	M10	15	15	70	34.1	14.3	M10X1.5	UC205-13	PG205
UCPG205-14		36.5	75	50	38	M10	15	15	70	34.1	14.3	M10X1.5	UC205-14	PG205
UCPG205-15		36.5	75	50	38	M10	15	15	70	34.1	14.3	M10X1.5	UC205-15	PG205
UCPG205-16		36.5	75	50	38	M10	15	15	70	34.1	14.3	M10X1.5	UC205-16	PG205
UCPG206	30	42.9	85	60	48	M10	18	17	83	38.1	15.9	M10X1.5	UC206	PG206
UCPG206-17		42.9	85	60	48	M10	18	17	83	38.1	15.9	M10X1.5	UC206-17	PG206
UCPG206-18		42.9	85	60	48	M10	18	17	83	38.1	15.9	M10X1.5	UC206-18	PG206
UCPG206-19		42.9	85	60	48	M10	18	17	83	38.1	15.9	M10X1.5	UC206-19	PG206
UCPG206-20		42.9	85	60	48	M10	18	17	83	38.1	15.9	M10X1.5	UC206-20	PG206
UCPG207	35	47.6	100	68	48	M12	18	17	93	42.9	17.5	M12X1. 75	UC207	PG207
UCPG207-20		47.6	100	68	48	M12	18	17	93	42.9	17.5	M12X1. 75	UC207-20	PG207
UCPG207-21		47.6	100	68	48	M12	18	17	93	42.9	17.5	M12X1. 75	UC207-21	PG207
UCPG207-22		47.6	100	68	48	M12	18	17	93	42.9	17.5	M12X1. 75	UC207-22	PG207
UCPG207-23		47.6	100	68	48	M12	18	17	93	42.9	17.5	M12X1. 75	UC207-23	PG207
UCPG208	40	49.2	110	78	54	M12	18	20	98	49.2	19	M12X1.75	UC208	PG208
UCPG208-24		49.2	110	78	54	M12	18	20	98	49.2	19	M12X1.75	UC208-24	PG208
UCPG208-25		49.2	110	78	54	M12	18	20	98	49.2	19	M12X1.75	UC208-25	PG208
UCPG209	45	53.9	120	85	54	M12	22	20	106	49.2	19	M12X1.75	UC209	PG209
UCPG209-26		53.9	120	85	54	M12	22	20	106	49.2	19	M12X1.75	UC209-26	PG209
UCPG209-27		53.9	120	85	54	M12	22	20	106	49.2	19	M12X1.75	UC209-27	PG209
UCPG209-28		53.9	120	85	54	M12	22	20	106	49.2	19	M12X1.75	UC209-28	PG209
UCPG210	50	57.2	135	95	60	M16	25	21	114	51.6	19	M16X2	UC210	PG210
UCPG210-29		57.2	135	95	60	M16	25	21	114	51.6	19	M16X2	UC210-29	PG210
UCPG210-30		57.2	135	95	60	M16	25	21	114	51.6	19	M16X2	UC210-30	PG210
UCPG210-31		57.2	135	95	60	M16	25	21	114	51.6	19	M16X2	UC210-31	PG210
UCPG210-32		57.2	135	95	60	M16	25	21	114	51.6	19	M16X2	UC210-32	PG210
UCPG211	55	63.5	140	100	60	M16	25	25	126	55.6	22.2	M16X2	UC211	PG211
UCPG211-32		63.5	140	100	60	M16	25	25	126	55.6	22.2	M16X2	UC211-32	PG211
UCPG211-33		63.5	140	100	60	M16	25	25	126	55.6	22.2	M16X2	UC211-33	PG211
UCPG211-34		63.5	140	100	60	M16	25	25	126	55.6	22.2	M16X2	UC211-34	PG211
UCPG211-35		63.5	140	100	60	M16	25	25	126	55.6	22.2	M16X2	UC211-35	PG211
UCPG212	60												UC212	PG212
UCPG212-36		69.8	150	105	70	M16	25	25	138	65.1	25.4	M16X2	UC212-36	PG212
UCPG212-37		69.8	150	105	70	M16	25	25	138	65.1	25.4	M16X2	UC212-37	PG212
UCPG212-38		69.8	150	105	70	M16	25	25	138	65.1	25.4	M16X2	UC212-38	PG212
UCPG212-39		69.8	150	105	70	M16	25	25	138	65.1	25.4	M16X2	UC212-39	PG212
UCPW201	12	33.3	65	50.8	32	M8	13	13	65	31	12.7	M8 X1. 25	UC201	PW204
UCPW202	15	33.3	65	50.8	32	M8	13	13	65	31	12.7	M8 X1. 25	UC202	PW204
UCPW203	17	33.3	65	50.8	32	M8	13	13	65	31	12.7	M8 X1. 25	UC203	PW204
UCPW204	20	33.3	65	50.8	32	M8	13	13	65	31	12.7	M8 X1. 25	UC204	PW204
UCPW201-8		33.3	65	50.8	32	M8	13	13	65	31	12.7	M8 X1. 25	UC201-8	PW204
UCPW202-9		33.3	65	50.8	32	M8	13	13	65	31	12.7	M8 X1. 25	UC202-9	PW204
UCPW202-10		33.3	65	50.8	32	M8	13	13	65	31	12.7	M8 X1. 25	UC202-10	PW204
UCPW203-11		33.3	65	50.8	32	M8	13	13	65	31	12.7	M8 X1. 25	UC203-11	PW204
UCPW204-12		33.3	65	50.8	32	M8	13	13	65	31	12.7	M8 X1. 25	UC204-12	PW204
UCPW205	25	36.5	70	50.8	36	M10	13	13	70	34	14.3	M10X 1.5	UC205	PW205
UCPW205-13		36.5	70	50.8	36	M10	13	13	70	34	14.3	M10X 1.5	UC205-13	PW205
UCPW205-14		36.5	70	50.8	36	M10	13	13	70	34	14.3	M10X 1.5	UC205-14	PW205
UCPW205-15		36.5	70	50.8	36	M10	13	13	70	34	14.3	M10X 1.5	UC205-15	PW205
UCPW205-16		36.5	70	50.8	36	M10	13	13	70	34	14.3	M10X 1.5	UC205-16	PW205
UCPW206	30	42.9	98	76.2	38	M10	16	15	82	38.1	15.9	M10X 1.5	UC206	PW206
UCPW206-17		42.9	98	76.2	38	M10	16	15	82	38.1	15.9	M10X 1.5	UC206-17	PW206
UCPW206-18		42.9	98	76.2	38	M10	16	15	82	38.1	15.9	M10X 1.5	UC206-18	PW206
UCPW206-19		42.9	98	76.2	38	M10	16	15	82	38.1	15.9	M10X 1.5	UC206-19	PW206
UCPW206-20		42.9	98	76.2	38	M10	16	15	82	38.1	15.9	M10X 1.5	UC206-20	PW206
UCPW207	35	47.6	103	82.6	45	M10	19	15	93	42.9	17.5	M10X 1.5	UC207	PW207
UCPW207-20		47.6	103	82.6	45	M10	19	15	93	42.9	17.5	M10X 1.5	UC207-20	PW207
UCPW207-21		47.6	103	82.6	45	M10	19	15	93	42.9	17.5	M10X 1.5	UC207-21	PW207
UCPW207-22		47.6	103	82.6	45	M10	19	15	93	42.9	17.5	M10X 1.5	UC207-22	PW207
UCPW207-23		47.6	103	82.6	45	M10	19	15	93	42.9	17.5	M10X 1.5	UC207-23	PW207
UCPW208	40	49.2	116	88.9	47	M12	19	15	99	49.2	19	M12X1. 75	UC208	PW208
UCPW208-24		49.2	116	88.9	47	M12	19	15	99	49.2	19	M12X1. 75	UC208-24	PW208
UCPW208-25		49.2	116	88.9	47	M12	19	15	99	49.2	19	M12X1. 75	UC208-25	PW208
UCPW209	45	53.9	120	95.3	48	M12	19	18	107	49.2	19	M12X1.75	UC209	PW209
UCPW209-26		53.9	120	95.3	48	M12	19	18	107	49.2	19	M12X1.75	UC209-26	PW209
UCPW209-27		53.9	120	95.3	48	M12	19	18	107	49.2	19	M12X1.75	UC209-27	PW209
UCPW209-28		53.9	120	95.3	48	M12	19	18	107	49.2	19	M12X1.75	UC209-28	PW209
UCPW210	50	57.2	135	101.6	54	M16	22	18	115	51.6	19	M16X2	UC210	PW210
UCPW210-29		57.2	135	101.6	54	M16	22	18	115	51.6	19	M16X2	UC210-29	PW210
UCPW210-30		57.2	135	101.6	54	M16	22	18	115	51.6	19	M16X2	UC210-30	PW210
UCPW210-31		57.2	135	101.6	54	M16	22	18	115	51.6	19	M16X2	UC210-31	PW210
UCPW210-32		57.2	135	101.6	54	M16	22	18	115	51.6	19	M16X2	UC210-32	PW210

Pillow Block:UCHA
Unit No.	Shaft Dia	Dimensions(mm)										Weight
	d	L	Ho	H	A	M(in)	F	C	A1	B	S	(kg)
	(mm)	L	Ho	H	A	M(in)	F	C	A1	B	S	(kg)
UCHA204	20	64	96	64	40	G3/4	19	0	21	31	12.7	0.7
UCHA204-12		64	96	64	40	G3/4	19	0	21	31	12.7	0.7
UCHA205	25	78	103	64	40	G3/4	19	0	24	34.1	14.3	0.74
UCHA205-14		78	103	64	40	G3/4	19	0	24	34.1	14.3	0.74
UCHA205-15		78	103	64	40	G3/4	19	0	24	34.1	14.3	0.74
UCHA205-16		78	103	64	40	G3/4	19	0	24	34.1	14.3	0.74
UCHA206	30	78	103	64	40	G3/4	19	0	28	38.1	15.9	0.91
UCHA206-17		78	103	64	40	G3/4	19	0	28	38.1	15.9	0.91
UCHA206-18		78	103	64	40	G3/4	19	0	28	38.1	15.9	0.91
UCHA206-19		78	103	64	40	G3/4	19	0	28	38.1	15.9	0.91
UCHA206-20		78	103	64	40	G3/4	19	0	28	38.1	15.9	0.91
UCHA207	35	92	116	70	40	G3/4	19	0	30	42.9	17.5	1.19
UCHA207-20		92	116	70	40	G3/4	19	0	30	42.9	17.5	1.19
UCHA207-21		92	116	70	40	G3/4	19	0	30	42.9	17.5	1.19
UCHA207-22		92	116	70	40	G3/4	19	0	30	42.9	17.5	1.19
UCHA207-23		92	116	70	40	G3/4	19	0	30	42.9	17.5	1.19
UCHA208	40	100	123	73	40	G3/4	19	2	33	49.2	19	1.36
UCHA208-24		100	123	73	40	G3/4	19	2	33	49.2	19	1.36
UCHA208-25		100	123	73	40	G3/4	19	2	33	49.2	19	1.36
UCHA209	45	108	136	82	48	G1	21	5	35	49.2	19	1.78
UCHA209-26		108	136	82	48	G1	21	5	35	49.2	19	1.78
UCHA209-27		108	136	82	48	G1	21	5	35	49.2	19	1.78
UCHA209-28		108	136	82	48	G1	21	5	35	49.2	19	1.78
UCHA210	50	119	142	83	48	G1	21	5	37	51.6	19	1.93
UCHA210-30		119	142	83	48	G1	21	5	37	51.6	19	1.93
UCHA210-31		119	142	83	48	G1	21	5	37	51.6	19	1.93
UCHA210-32		119	142	83	48	G1	21	5	37	51.6	19	1.93
UCHA211	55	126	150	87	60	G5/4	25	7	38	55.6	22.2	3.5
UCHA211-32		126	150	87	60	G5/4	25	7	38	55.6	22.2	3.5
UCHA211-34		126	150	87	60	G5/4	25	7	38	55.6	22.2	3.5
UCHA211-35		126	150	87	60	G5/4	25	7	38	55.6	22.2	3.5
UCHA212	60	142	173	102	60	G5/4	28	9	42	65.1	25.4	3.9
UCHA212-36		142	173	102	60	G5/4	28	9	42	65.1	25.4	3.9
UCHA212-38		142	173	102	60	G5/4	28	9	42	65.1	25.4	3.9
UCHA212-39		142	173	102	60	G5/4	28	9	42	65.1	25.4	3.9

Common Problems Faced by Equipment Operators

Equipment owners frequently encounter:

Shaft misalignment causing premature bearing wear

Excessive vibration during continuous operation

Dust and moisture entering the bearing chamber

Difficult bearing replacement procedures

Unexpected downtime due to housing damage

Frequent maintenance requirements

These issues can increase operating costs and shorten equipment service life.

BMT Mounted Bearings and Housings are engineered to address these challenges through optimized housing design, controlled bearing clearances, and effective sealing systems.

High-Strength Housing for Stable Shaft Support

Housing rigidity directly affects bearing performance.

Depending on application requirements, BMT offers:

Cast Iron Housings

Recommended for:

Heavy-duty industrial equipment

Conveyor systems

Agricultural machinery

Mining equipment

Benefits include:

Better vibration absorption

Higher structural strength

Improved resistance to deformation

More stable shaft positioning

Pressed Steel Housings

Suitable for:

Light-duty machinery

Compact equipment

Applications where weight reduction is important

Benefits include:

Lower weight

Cost-effective installation

Easy replacement

All housing surfaces are precision machined to maintain mounting accuracy and proper bearing alignment.

Bearing Inserts Built for Continuous Operation

The bearing insert is the core component of every mounted unit.

BMT bearing inserts are manufactured from high-quality bearing steel and undergo controlled heat treatment to achieve consistent hardness and fatigue resistance.

Key performance benefits include:

Reduced operating noise

Lower vibration levels

Stable rotational accuracy

Improved fatigue life

Reduced heat generation

For applications exposed to contamination, we provide multi-lip sealing configurations that help prevent:

Dust ingress

Mud contamination

Water penetration

Proper sealing is particularly important in agricultural, material handling, and outdoor operating environments.

Faster Installation and Lower Maintenance Costs

One advantage of mounted bearing units is installation efficiency.

The integrated design allows rapid shaft mounting without complicated machining or alignment procedures.

Available locking systems include:

Set screw locking

Eccentric locking collar

Adapter sleeve locking

These options allow maintenance teams to replace bearing units quickly, reducing production downtime and labor costs.

For factories operating multiple production lines, shortened replacement time can significantly improve maintenance efficiency.

Manufacturing and Quality Control

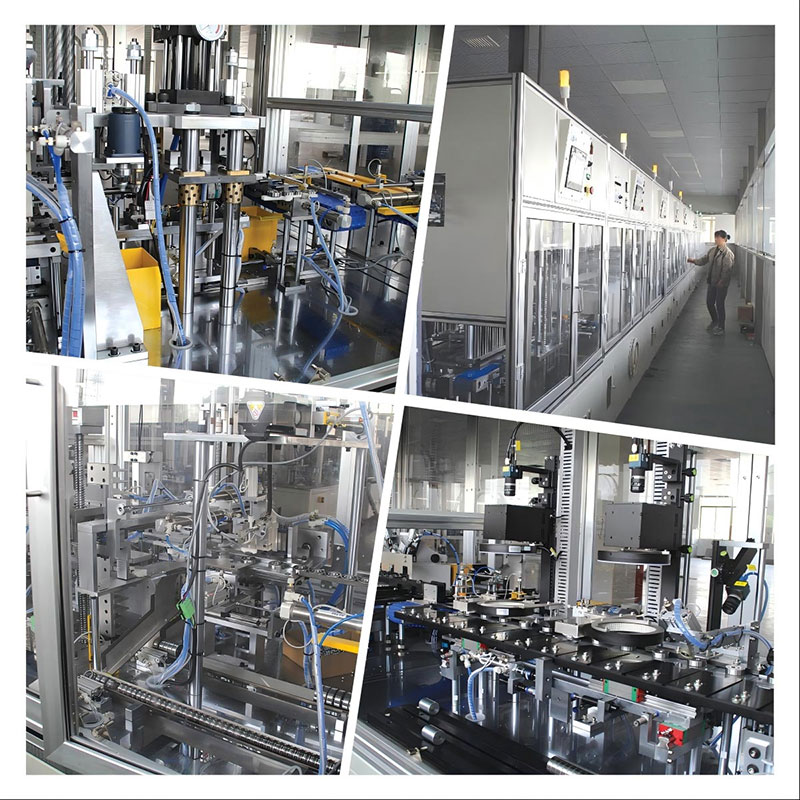

BMT Bearings operates automated grinding and assembly production lines with annual manufacturing capacity exceeding 100 million bearing units.

Every production batch undergoes multiple inspection procedures, including:

Dimensional accuracy verification

Radial clearance measurement

Noise testing

Vibration analysis

Rotational performance testing

Surface hardness inspection

For OEM projects, complete production traceability records can be maintained throughout manufacturing.

Our quality management system complies with:

ISO 9001

IATF 16949

These standards help ensure consistent product quality for industrial and automotive supply chains.

Typical Applications

Agricultural Machinery

Suitable for:

Seeders

Harvesters

Fertilizer spreaders

Irrigation equipment

The sealed design helps reduce contamination from dust, soil, and crop residue.

Conveyor Systems

Widely used in:

Belt conveyors

Roller conveyors

Warehouse automation systems

Packaging lines

Designed for continuous operation and easy maintenance.

Pumps and Electric Motors

Provides stable shaft support while helping reduce vibration and improve rotational efficiency.

Food Processing Equipment

Available with sealing configurations suitable for humid operating environments where equipment cleanliness and reliability are important.

Mining and Construction Equipment

Heavy-duty housing options help withstand shock loads and harsh operating conditions.

How to Select the Right Mounted Bearing Unit

Before selecting a mounted bearing assembly, the following factors should be evaluated:

Shaft Diameter

The bore size must match the shaft dimension accurately.

Load Conditions

Determine whether the unit will experience:

Radial loads

Axial loads

Combined loads

Operating Speed

Higher rotational speeds may require specific bearing clearances and lubrication arrangements.

Environmental Conditions

Consider exposure to:

Dust

Moisture

Mud

Chemicals

Temperature variations

Maintenance Requirements

Applications with limited maintenance access often benefit from enhanced sealing solutions.

Our engineering team can recommend suitable housing types, locking methods, and sealing configurations based on actual operating conditions.

OEM and Custom Manufacturing Support

For equipment manufacturers and industrial distributors, BMT supports:

OEM bearing production

Customized sealing systems

Special housing materials

Non-standard dimensions

Private label packaging

Bulk order supply

Customization helps ensure compatibility with specific equipment designs and operating requirements.

Global Supply Experience

BMT Mounted Bearings and Housings are supplied to customers in Europe, Southeast Asia, South America, and the Middle East.

Our products are commonly used by:

Agricultural machinery manufacturers

Conveyor system producers

Electric motor factories

Industrial equipment distributors

Maintenance and repair companies

Stable production scheduling and inventory management help support long-term supply programs and OEM cooperation.

BMT Factory

Need Help Choosing the Correct Mounted Bearing Unit?

If you can provide:

Shaft size

Equipment type

Load condition

Operating speed

Working environment

Our technical team can recommend a suitable mounted bearing and housing configuration to help improve equipment reliability, reduce maintenance frequency, and lower operating costs.

Hot Tags: Mounted Bearings and Housings

Related Category

Send Inquiry

Contact Info



Address

No.183,Longfeng,West of Zhangting industrial Zone,Yuyao,Ningbo,China


Tel

+86-15990260649


E-mail

info@demy-bearing.com

Submit specifications for Industrial Bearings, Deep Groove Ball Bearings, Taper Roller Bearings, and more. BMT’s team responds within 24 hours with competitive pricing for durable bearings.
